McKissick Evolution Series Snatch Blocks Miller Exclusive

Be the first to review this product

Choose SIZE *: 6" - 8 Ton WLL

6" - 8 Ton WLL

Not available

8" - 12 Ton WLL

8" - 12 Ton WLL

Not available

8" - 15 Ton WLL

8" - 15 Ton WLL

Not available

SKU: SNATCH-BLOCK-EVO

Price: $1,363.99–$2,262.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

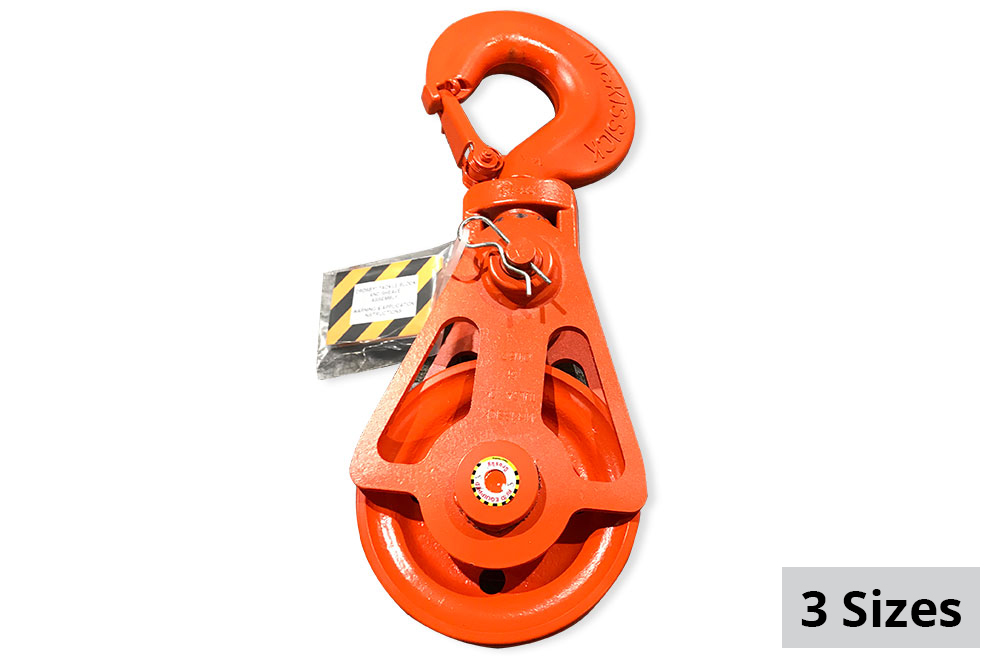

The 420 Champion Series snatch blocks from McKissick are perfect for heavy duty rigging operations because they greatly improve your winches function and pulling power. The hooks and side plates are made from forged alloy steel that is also heat treated. This makes the blocks exceptionally durable while keeping them as light as possible. Each of these sizes will fit a 3/4" - 7/8" wireline. The opening feature permits the insertion of a rope line while the block is suspended from a gin-pole. The side plates on these snatch blocks have been designed to eliminate the possibility of a rope jamming.

All parts are forged
Furnished with bronze bushings
Pressure lube fittings
Blocks furnished with dual rated Wireline sheaves
Fatigue rated
All sizes are RFID Equipped

Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements.

Available in the following sizes

Item #	Sheave Size	WLL	Wire Rope Size
MK169374	6"	8 Ton	5/8" - 3/4"
MK169418	8"	12 Ton	3/4" - 7/8"
MK110221	8"	15 Ton	3/4" - 7/8"

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Size
50005566	50005566	6" - 8 Ton WLL
50005567	50005567	8" - 12 Ton WLL
50005568	50005568	8" - 15 Ton WLL
