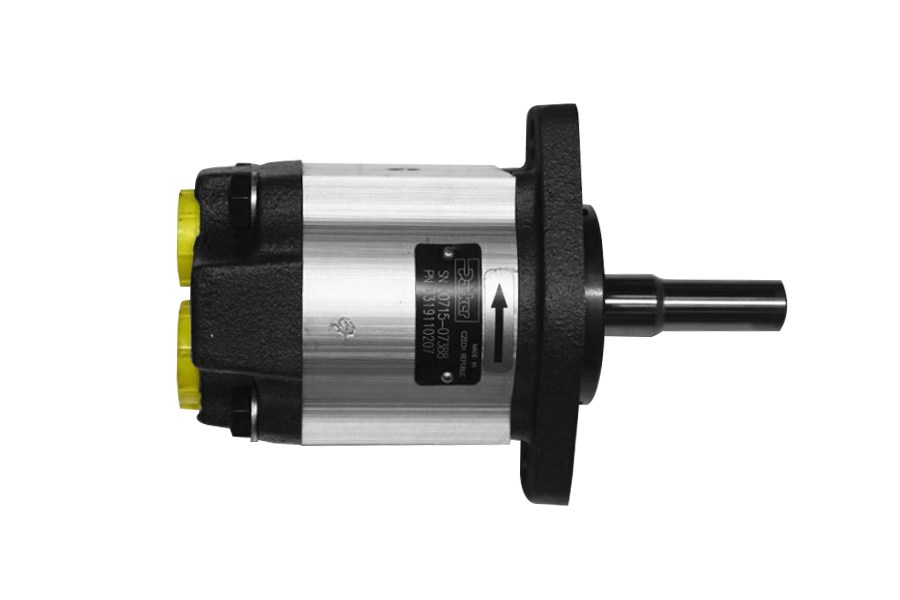

Parker Chelsea .43ci AA Hydraulic Pump Rear Port

SKU: 720214

Price: $378.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

DewEze AA Parker Hydraulic Pump 0.43ci P505 331-9110-207 Rear Port S10mb P8mb. This is the Pump Only

NOTE TO INSTALLER Clutches will need a short burnishing period to generate the rated torque. This is a process of cycling the clutch to slightly wear the friction surfaces. This allows full contact and maximum magnetic attraction required for rated torque (or more).

BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.

Mount: AA
GPM: 2.79
Port: Rear
Shaft: 1/2" Straight
Bolt: 1/4-20x3/4
Rotation: CW
Material: AL
CS Thick: 2"
Model Number: 331-9110-207
CI: .43
Suction H: 5/8"
Suction F: 10mb
Pressure H: 1/2"
Pressure F: 8mb
PSI R1: 3900
PSI R2: 3900
Seal Kit: N/A
Shaft Key: 710918
Thrust Plate: 722036
Series: P505
