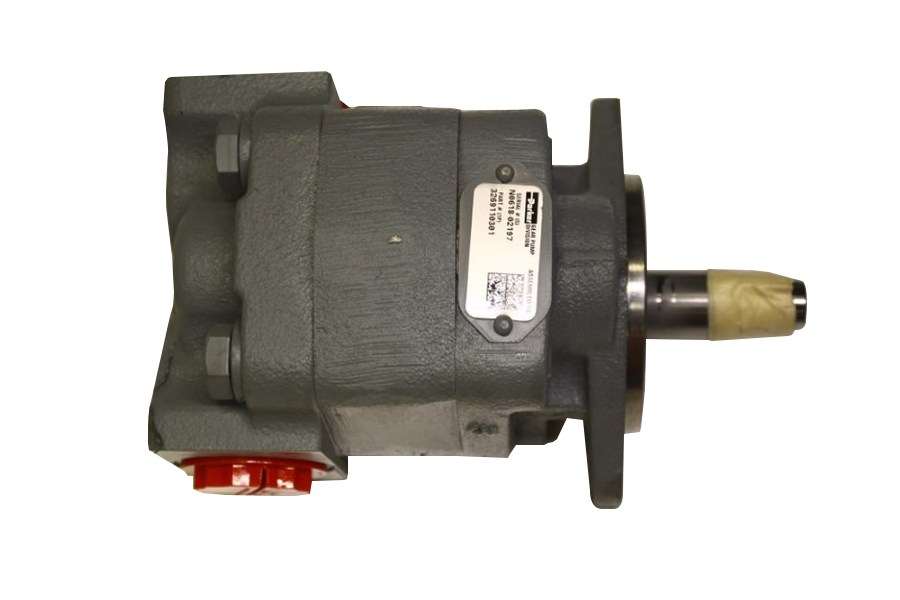

Parker Chelsea A Clutch Pump 12 GPM Side Port

Be the first to review this product

SKU: 720212

Price: $676.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

DewEze Pump 12GMP Side Port. A Mount Parker P315 326-9110-301 Side Port S20mb P16mb. This is the Pump Only, Compatible with DewEze Products.

TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.

Mount: A
GPM: 12
Port: Side
Shaft: 7/8" Taper
Bolt: 5/16-24 x 1
Rotation: CW
Material: Iron
CS Thick: 1-1/2"
Model Number: 326-9110-301
CI: 1.04
Suction H: 1-1/4"
Suction F: 20mb
Pressure H: 1"
Pressure F: 16mb
PSI R1: 2000
PSI R2: 3000
Seal Kit: 720185
Shaft Key: 720161
Thrust Plate: 720229
Series: P315
