Parker Chelsea PTO Allison 1000 RH Side C4500/5500 Chassis 122%

0 reviews

Leave a Review

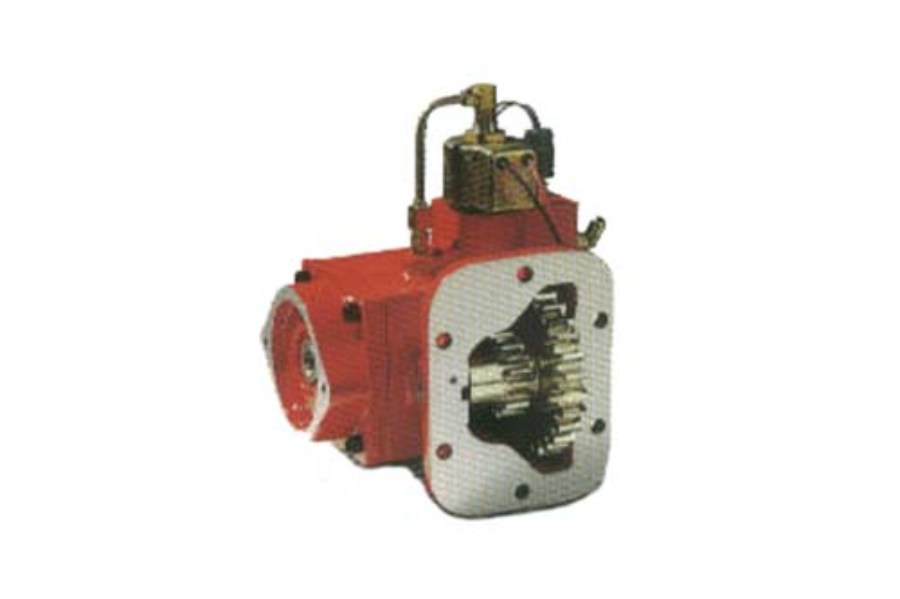

Picture of Parker Chelsea PTO Allison 1000 RH Side C4500/5500 Chassis 122%

SKU: 250GDHVP-B5XE

Price: $1,687.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Chelsea Power Shift PTOs deliver clash-free shifts whether the vehicle is stationary or on the move. Constant mesh input gears and specially designed clutch packs make these PTOs ideal for applications that demand frequent PTO shifting. Compatible with Force America Products. The 250 PTO series is a hydraulically operated (electric-over-hydraulic) and is used with the 2002 and newer Allison "1000" series transmissions used in the Chevrolet/GMC C4500/5500 chassis.

Output 122% of engine speed
Output SAE "A" 2 or 4 bolt 5/8"-9 tooth splined shaft - engine rotation
Right (Drivers) side of transmission installation (C/K30)
Includes stud kit
Chevrolet/GMC application includes 2002 to current C/K30 with 1000 series Allison (Requires optional heat sheild/steel line kit - see 251GDHVP-B5XE for PTO w/Heat Sheild Kit)
Chevrolet/GMC application includes 2003 to current 45/55/6500 series chassis with 1000, 2000, 2200, or 2400 series Allison transmission
An OPTIONAL lube "T" fitting is REQUIRED in the oil return cooling line to supply low pressure oil to the idler shaft of the PTO. Part number 378840 "T" fitting is for the transmission model 1000 with SAE #3 bell housing. Part number 378970 for transmission models 1000/2000/2400 with the SAE #2 bell housing. The high pressure port requires a 7/16-20 O-ring boss fitting

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #
250GDHVP-B5XE	252GDHVP-B5XE
