Parker Chelsea Pump Side Port 17 GPM A

0 reviews

Leave a Review

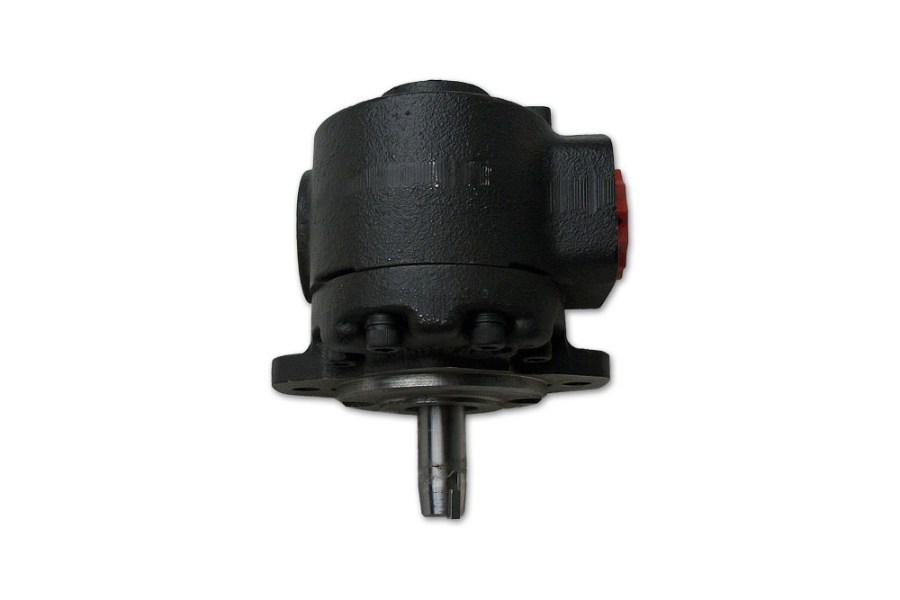

Picture of Parker Chelsea Pump Side Port 17 GPM A

SKU: 720295

Price: $1,236.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

This is a Parker 17 Gallon Per Minute Hydraulic Pump at 1600 RPMs. This is a Parker PH14 "A" Mount Pump with a clockwise rotation. This pump features side ports. This pump has a 7/8" tapered shaft with a woodruff keyway. This pump will work with Chevron Wreckers, Compatible with DewEze Products. This is the Pump Only

BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.

Mount: A
GPM: 17
Port: Side
Shaft: 3/4" Taper
Bolt: 5/16-24 x 1
Rotation: CW
Material: Iron
Model Number: 304-9110-004
CI: 1.94
Suction H: 1- 1/4"
Suction F: 20mb
Pressure H: 3/4"
Pressure F: 12mb
PSI R1: 1800
PSI R2: 2600
Seal Kit: 722077
Shaft Key: 702071
Thrust Plate: 722070
Series: PH14
