Ramsey H-246 8,000 lb. FOLS Square Drive Hydraulic Worm Winch - Winch Only

0 reviews

Leave a Review

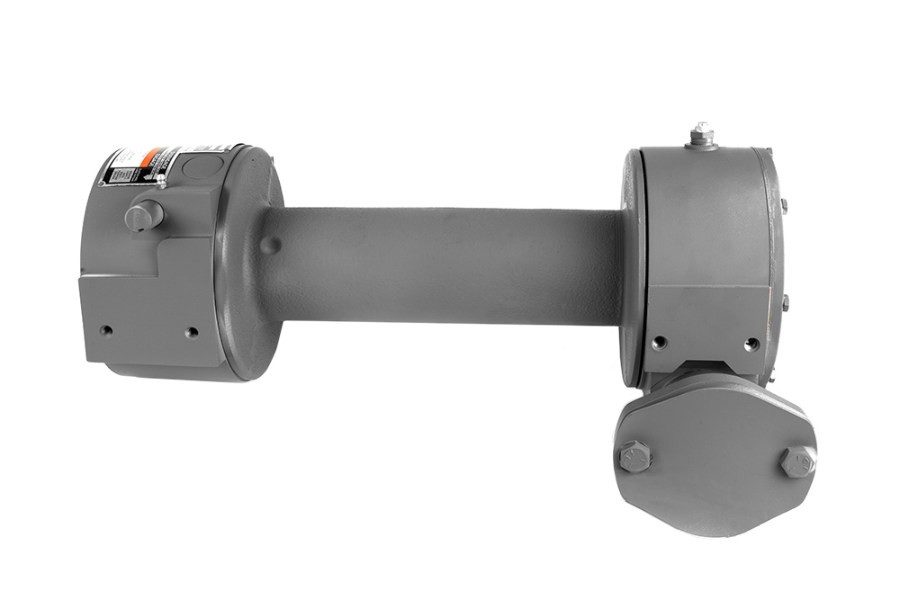

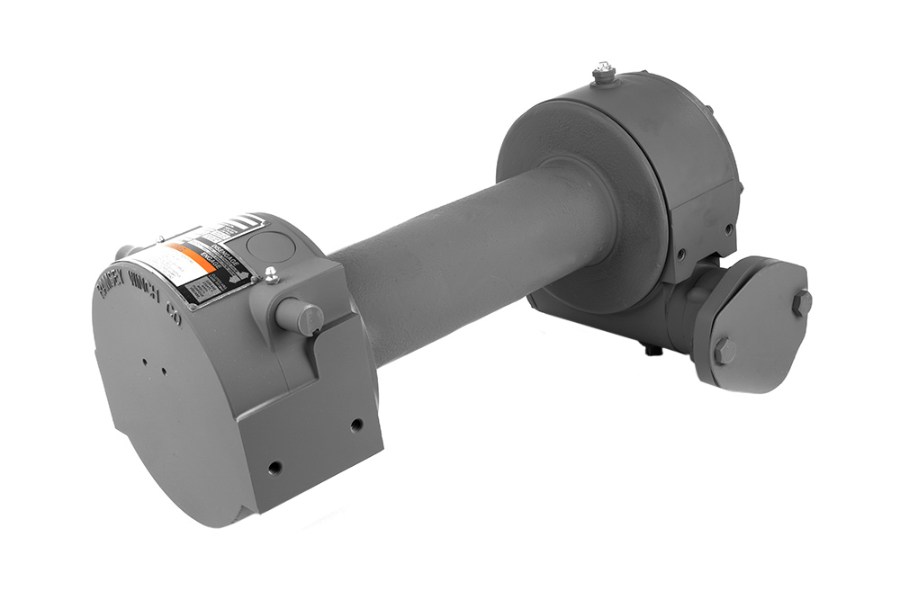

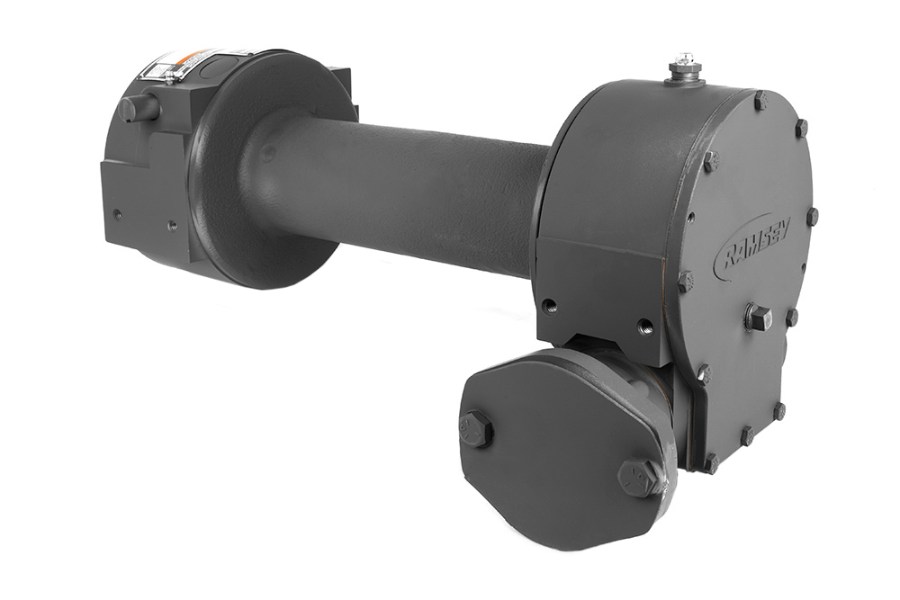

Picture of Ramsey H-246 8,000 lb. FOLS Square Drive Hydraulic Worm Winch - Winch Only

SKU: H-246

Price: $1,249.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Replacement Ramsey Winch for Century and Champion carriers. Winch only. Does not include the motor, mounting angles, or square drive.

Ramsey Part Number: 121710
Model: H246R
Line Pull: 8,000 lbs
Clutch: Lever Style (Lever Not Included)
Worm Gear: Square Drive
Mounting Configuration: Front Overwind Left Side/Rear Overwind Right Side
Gear Ratio: 46:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
Adjustable/Automatic Brake: No
Recommended Cable: 3/8"
For an alternative winch see part number HD-200R
Replaces part number 12-0300250
Meets SAE-J706
Made in the USA

Applications
Replaces Century and Champion Carrier Winch
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer

Model H246 Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 16.5'/min / 5.0m/min
Gear Ratio: 46:1
Weight w/o Cable: 110 lbs / 50 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
Cable: None
Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
Cable Capacity: 140' / 42.7m
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 1,800 PSI (124 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 4.5 Cu. In. (74 cc)
Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: Air, Manual, Electric
