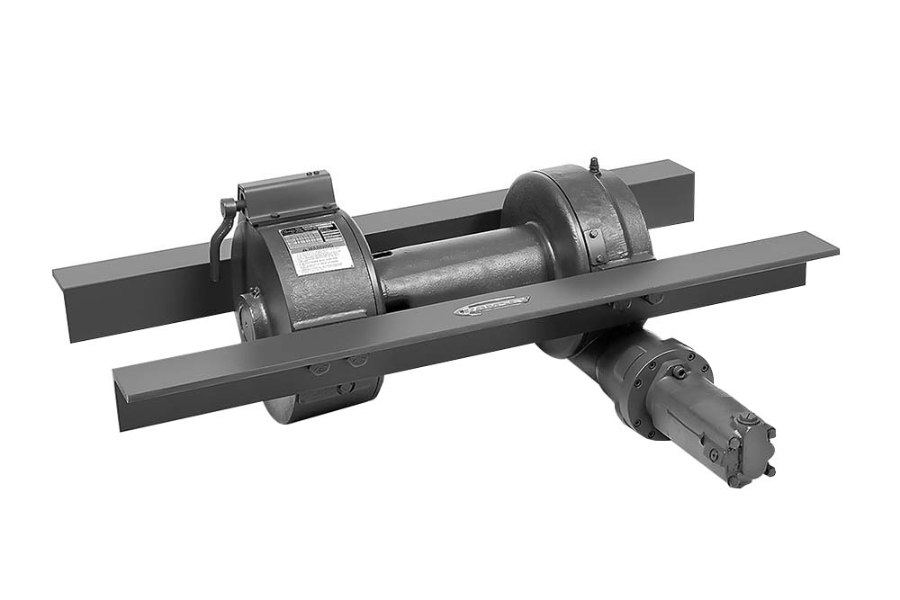

Ramsey H-930R FOLS with Dow-Lok

The H-930R is a 30,000 lbs. hydraulic worm gear winch with a direct mount hydraulic motor. 13 7/8" wide drum accepts up to 155' of 3/4" cable.


• Model: H-930R
• Line Pull: 30,000 lbs
• Clutch: Dow-Lok
• Mounting Configuration: Front Overwind Left Side
• Gear Ratio: 41:1
• Motor Included: Yes
• Angles Included: Yes
• Drum Length: 13.81"+-/16"
• Adjustable/Automatic Brake: Yes
• Heavy Duty
• Includes Brake
• Recommended Cable: 3/4"
• Meets SAE-J706
• Made in the USA

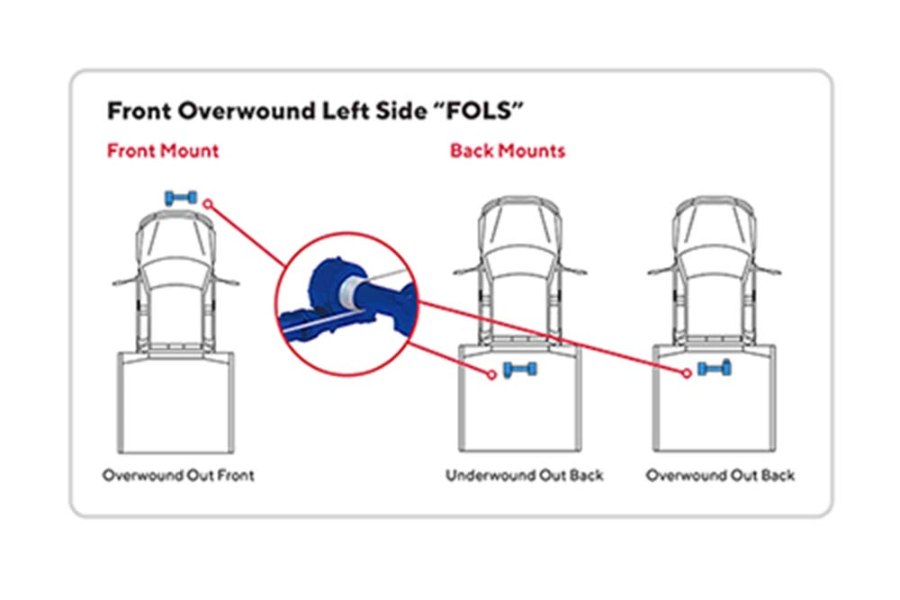

  Winch Mount Configuration





  Applications

• General Industrial
• Mining & Construction
• Railroad
• Specialty Vehicle
• Towing & Recovery
• Towing & Recovery (Heavy Wrecker)
• Towing & Recovery (Medium Wrecker)
• Trailer



  Model H-930R Specifications

• Rated Line Pull: 30,000 lbs / 13,608 Kg (1st Layer of Cable)
• 1st Layer Line Speed: 13'/min / 3.9m/min
• Gear Ratio: 41:1
• Weight w/o Cable: 515 lbs / 234 Kg
• Brake: Yes - brake is self-locking (Includes auxiliary brake)
• Cable: None
• Drum Size (L x F x B): 13.81" x 13.12" x 6" / 350.8mm x 333.2mm x 152.4mm
• Cable Capacity: 155' / 47.2m
• Recommend Cable Size: 3/4" / 19.1mm
• Hydraulic Pressure Required: 2,500 PSI (172 Bar)
• Hydraulic Flow Required: 35.0 GPM (132 LPM)
• Motor Size: 24.0 Cu. In. (393 cc)
• Additional Motor Options: Must Call
• Clutch Type: Blocked, DOW-LOK?
• Clutch Control: Air, Manual
