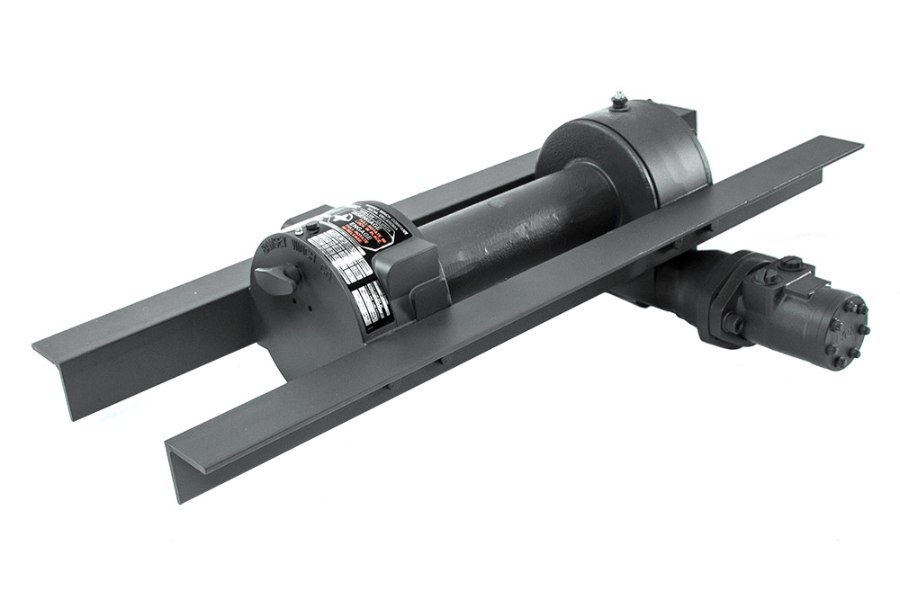

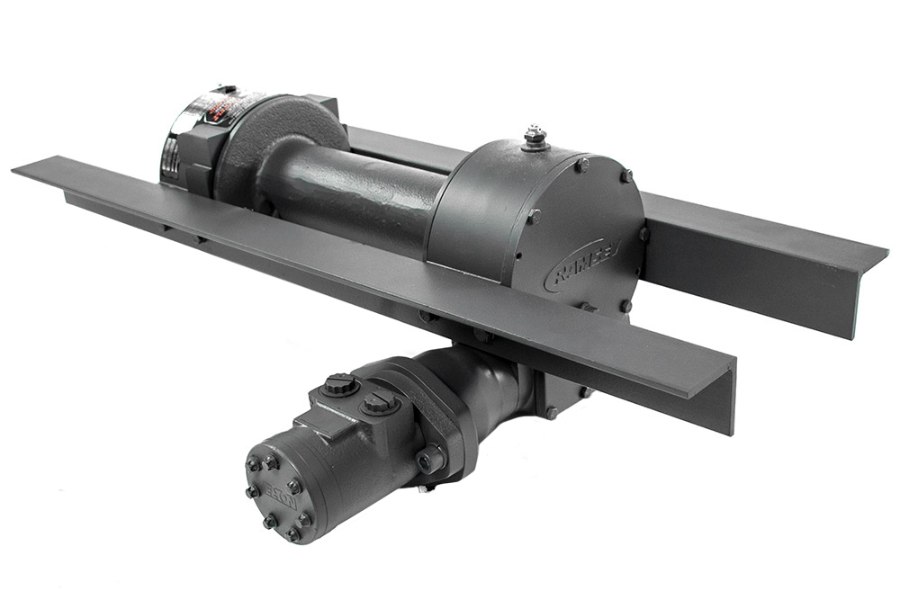

Ramsey HD-234 8,000 lb. Hydraulic Worm Winch

0 reviews

Leave a Review

Picture of Ramsey HD-234 8,000 lb. Hydraulic Worm Winch

Choose STYLE *: Winch w/Motor & Angles

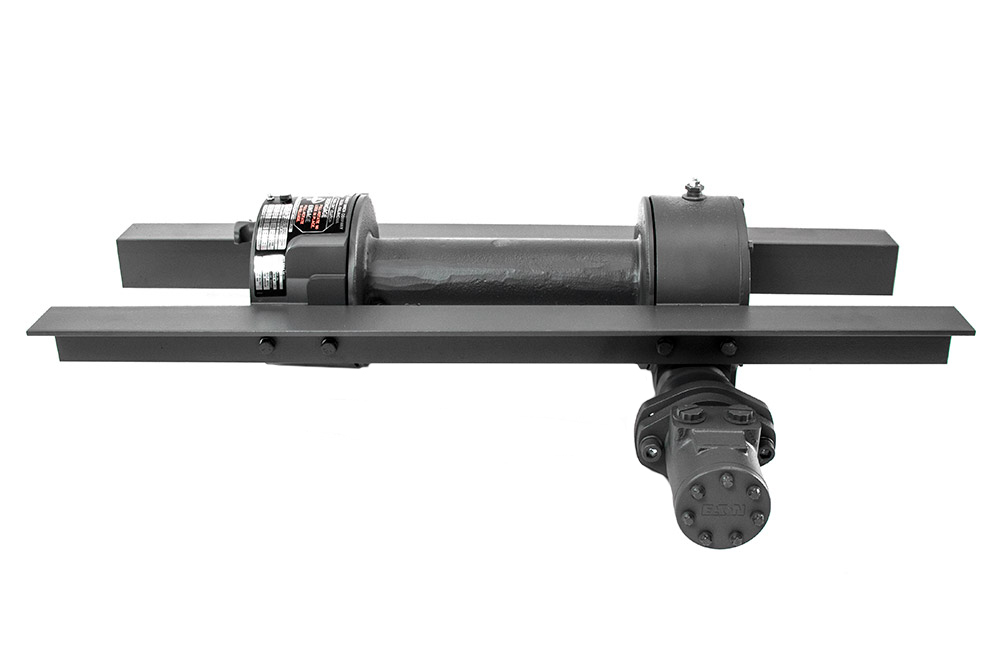

Winch w/Motor & Angles

Not available
Choose MOUNT *: Right Hand (FORS)

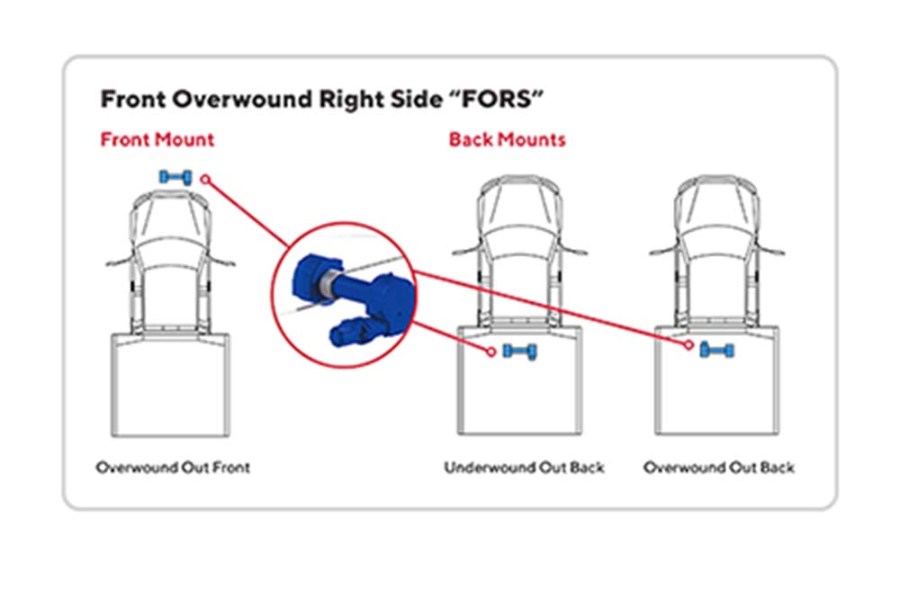

Right Hand (FORS)

Not available
Choose CONTROL *: Ram-Lok

Ram-Lok

Not available

SKU: HD-234-WINCH

Price: $1,169.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

One of the most popular winches in the Towing & Recovery industry. These 8000 lb. Ramsey winches are used on most tow trucks and car carriers. This makes it more economical to replace your old winch rather than to repair it.

Model: HD-234
Line Pull: 8,000 lbs
Gear Ratio: 34:1
Drum Length: 11"+-/16"
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended cable 3/8
Meets SAE-J706
Made in the USA

Applications
Replaces Chevron Car Carrier OEM Winches
Replaces Jerr-Dan Car Carrier OEM Winches
Replaces Century Car Carrier OEM Winches
Replaces Vulcan Car Carrier OEM Winches
Replaces Champion Car Carrier OEM Winches
Replaces Challenger Car Carrier OEM Winches
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer

Model HD-234R Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 28'/min / 8.5m/min
Gear Ratio: 34:1
Weight w/o Cable: 110 lbs / 50 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (Includes auxiliary brake)
Cable: None
Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
Cable Capacity: 140' / 42.7m
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 2,375 PSI (164 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 3.6 Cu. In. (59 cc)
Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: Air, Manual, Electric

Related Schematics

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	CONTROL	Mount	STYLE
RW-121784	121784	Ram-Lok	Right Hand (FORS)	Winch w/Motor & Angles
