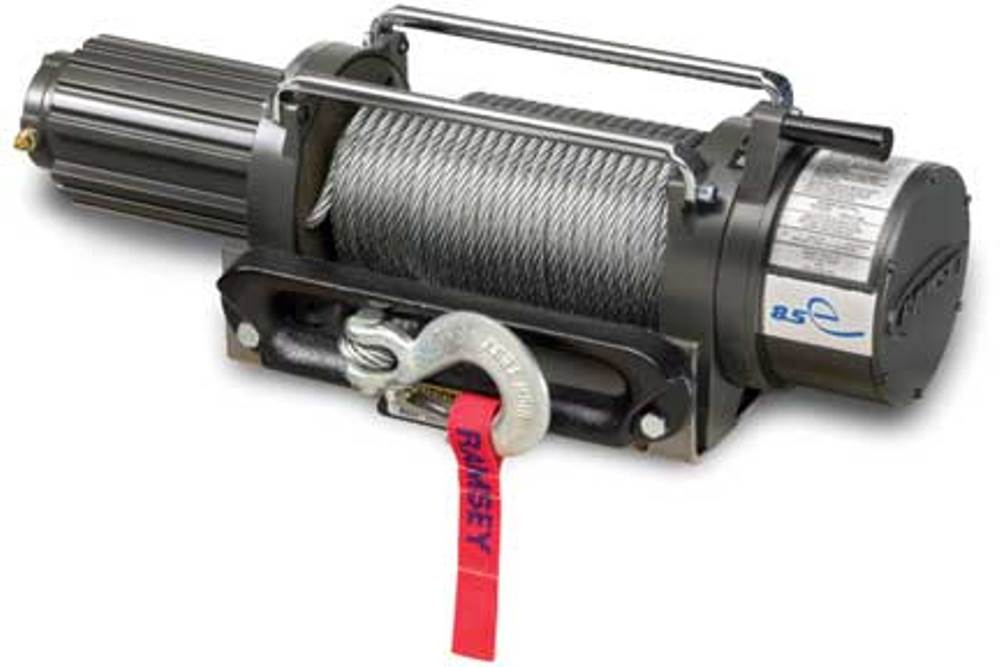

Ramsey REP 8.5E 8,500 lb. Electric Planetary Winch

Be the first to review this product

Choose STYLE *: 24v with 12' Pendant

24v with 12' Pendant

Not available

12v with 12' Pendant

12v with 12' Pendant

Not available

SKU: RW-REP 8.5E

Price: $1,269.99–$1,354.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Ramsey REP 8.5E H with 12' Wire Pendant-Cam action clutch disengages planetary gear system for free spooling. Proven 3-stage planetary gear system design for fast line speed.

Cam action clutch disengages planetary gear system for free spooling
Proven 3-stage planetary gear system design for fast line speed
5 Ft. (1.52 M) 4-gauge battery cables with connectors
Weather resistant solenoid assembly
Automatic load-holding brake
12 Ft. wire pendant remote
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 8,500 lbs / 3,856 Kg (1st Layer of Cable)
Gear Ratio: 294:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
Cable Capacity: 95' / 29m
Recommend Cable Size: 5/16" / 7.9mm
1st Layer Line Speed: 15'/min / 4.6m/min
Motor Output: 2.5 HP
Motor Type: Permanent Magnet
Voltage: 12V
Fairlead: Hawse
Clutch Type: Cam Action
Clutch Control: Manual

Style

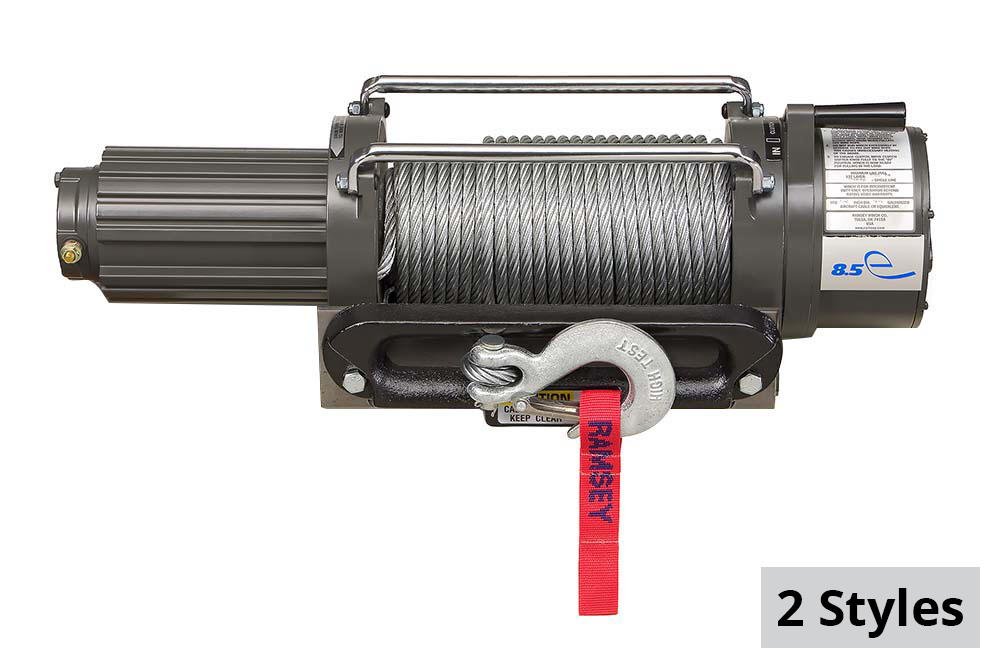

RW-111073: 12v with 12' Pendant
RW-111076: 24v with 12' Pendant
