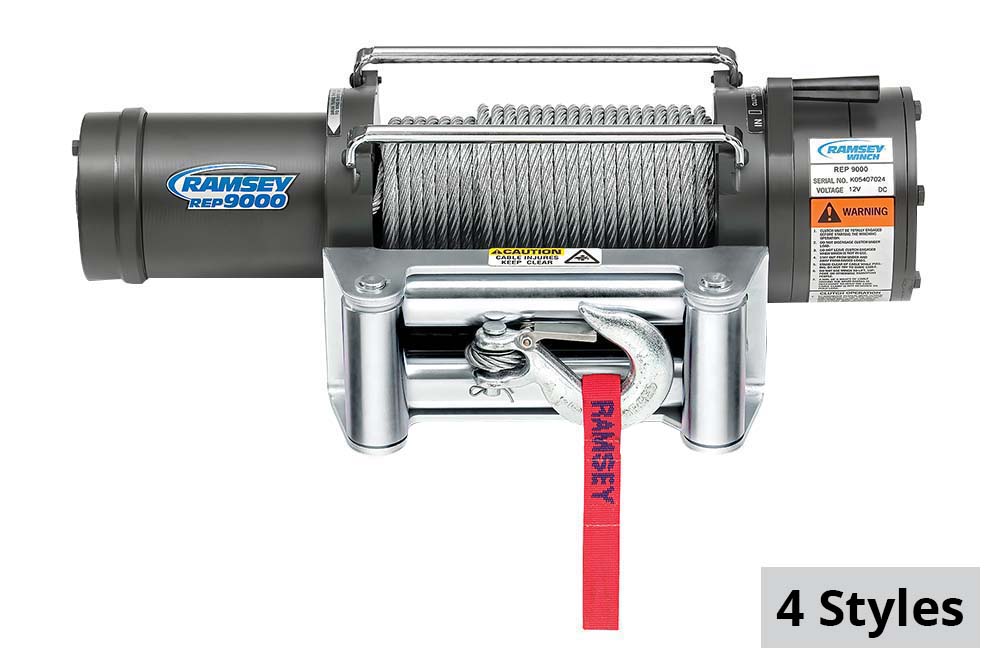

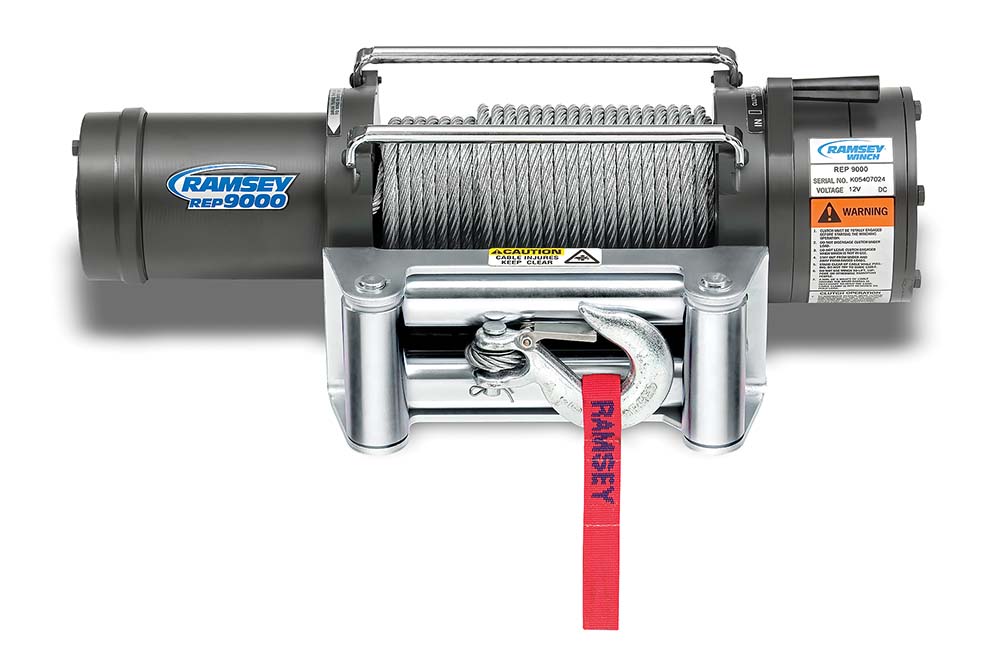

Ramsey REP 9000 Electric Planetary Winch

Be the first to review this product

Choose STYLE *: 12v CE with 12' Pendant

12v CE with 12' Pendant

Not available

24v with 12' Pendant

24v with 12' Pendant

Not available

24v CE with 12' Pendant

24v CE with 12' Pendant

Not available

12v with 12' Pendant

12v with 12' Pendant

Not available

SKU: RW-REP 9000

Price: $1,854.99–$2,149.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Ramsey REP 9000 with 12' Wire Pendant-Proven three-stage planetary gear system design for fast line speed. Strong automatic load-holding brake for strength. Cam action clutch disengages planetary gear system for free spooling.

Cam action clutch disengages planetary gear system for free spooling
Proven 3-stage planetary gear system design for fast line speed
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
Weather resistant solenoid assembly
12 Ft. wire pendant remote
6 ft. (1,83 M) 2 gauge battery
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 9,000 lbs / 4,083 Kg (1st Layer of Cable)
Gear Ratio: 138:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
Cable Capacity: 95' / 29m
Recommend Cable Size: 5/16" / 7.9mm
1st Layer Line Speed: 33'/min / 10.1m/min
Motor Output: 4.8 HP
Motor Type: Series Wound
Voltage: 12V / 24V
Fairlead: Roller
Clutch Type: Cam Action
Clutch Control: Manual

Style
RW-111072: 12v CE with 12' Pendant
RW-111070: 24v CE with 12' Pendant
RW-111038: 12v with 12' Pendant
RW-110976: 24v with 12' Pendant

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	STYLE
RW-111072	111072	12v CE with 12' Pendant
RW-110976	110976	24v with 12' Pendant
RW-111070	111070	24v CE with 12' Pendant
RW-111038	111038	12v with 12' Pendant
