Ramsey RPH 12,000 Hydraulic Planetary Winch

0 reviews

Leave a Review

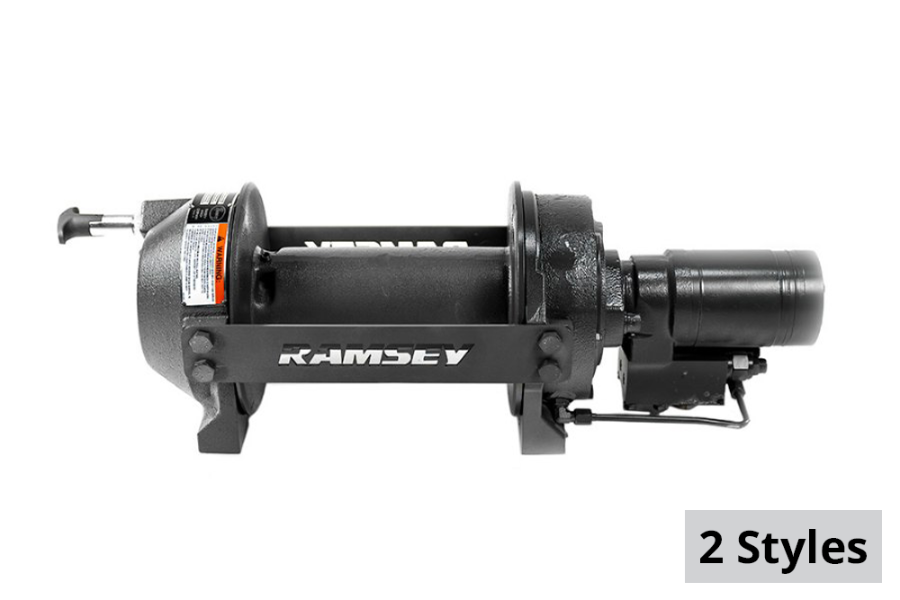

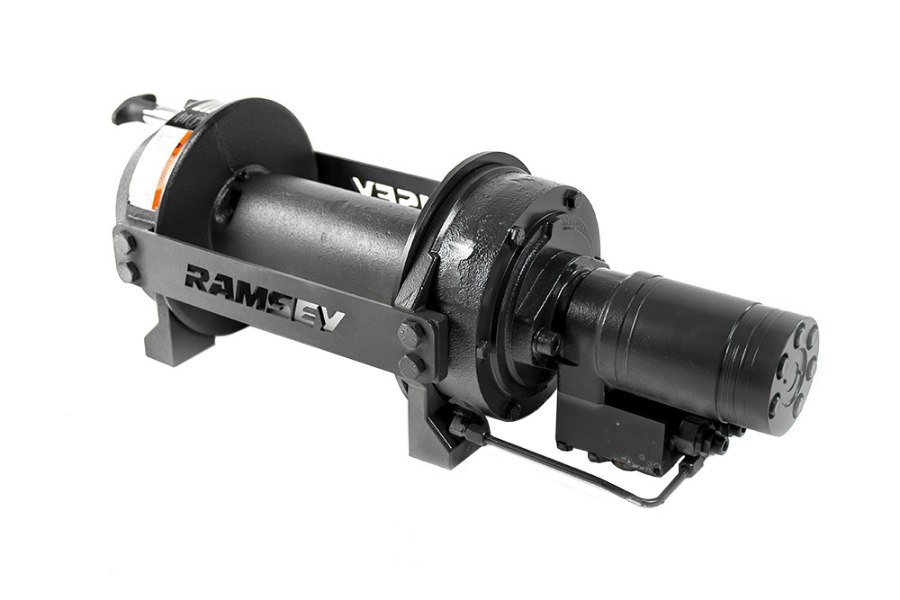

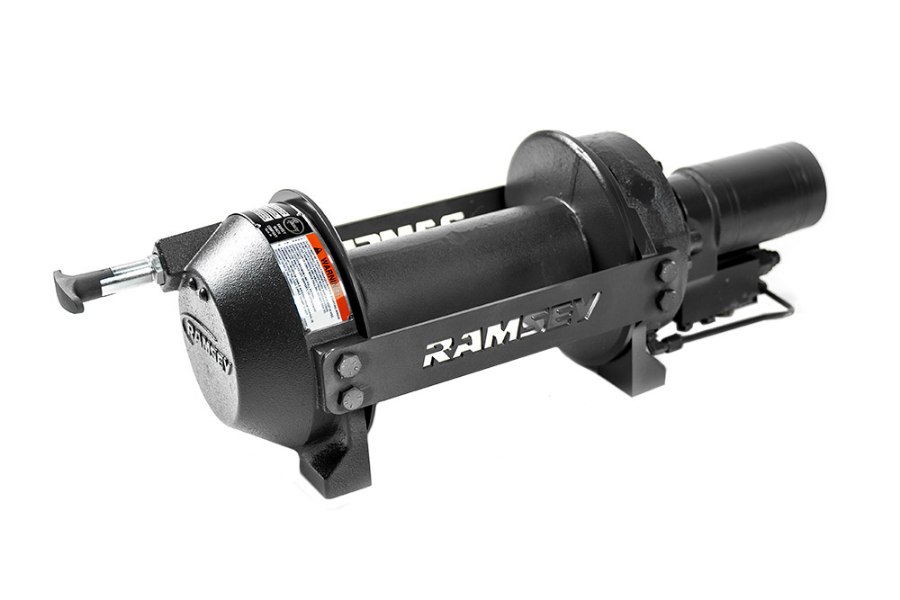

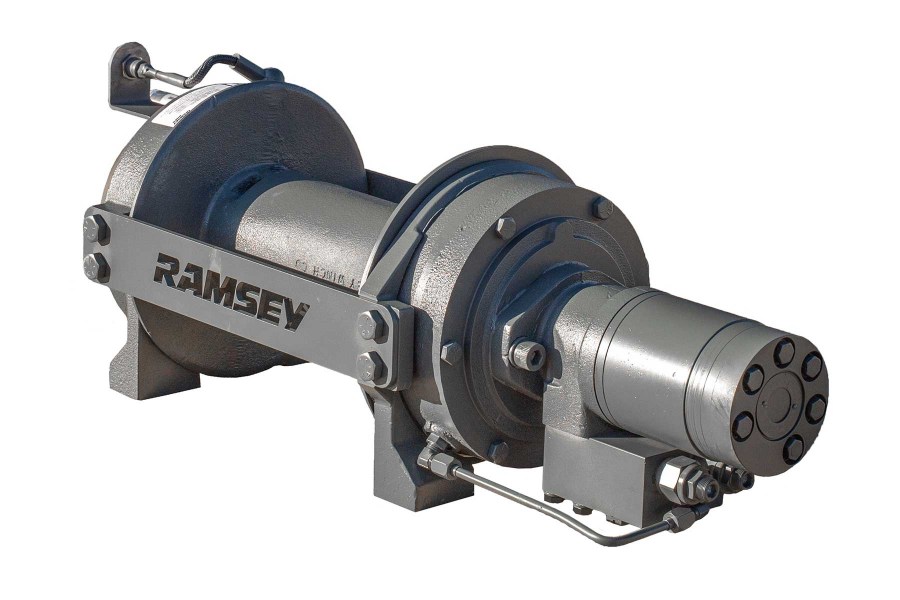

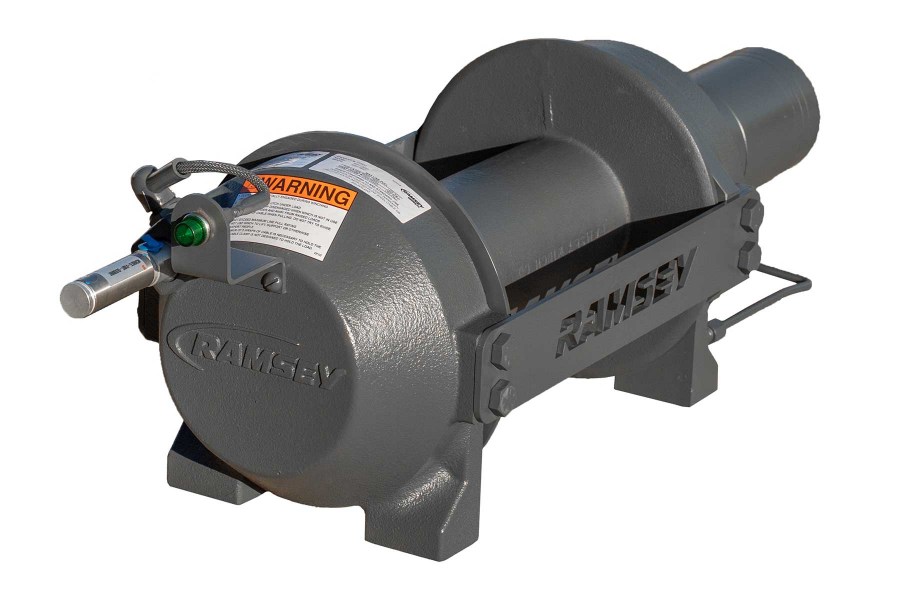

Picture of Ramsey RPH 12,000 Hydraulic Planetary Winch

Choose STYLE *: Air Shift

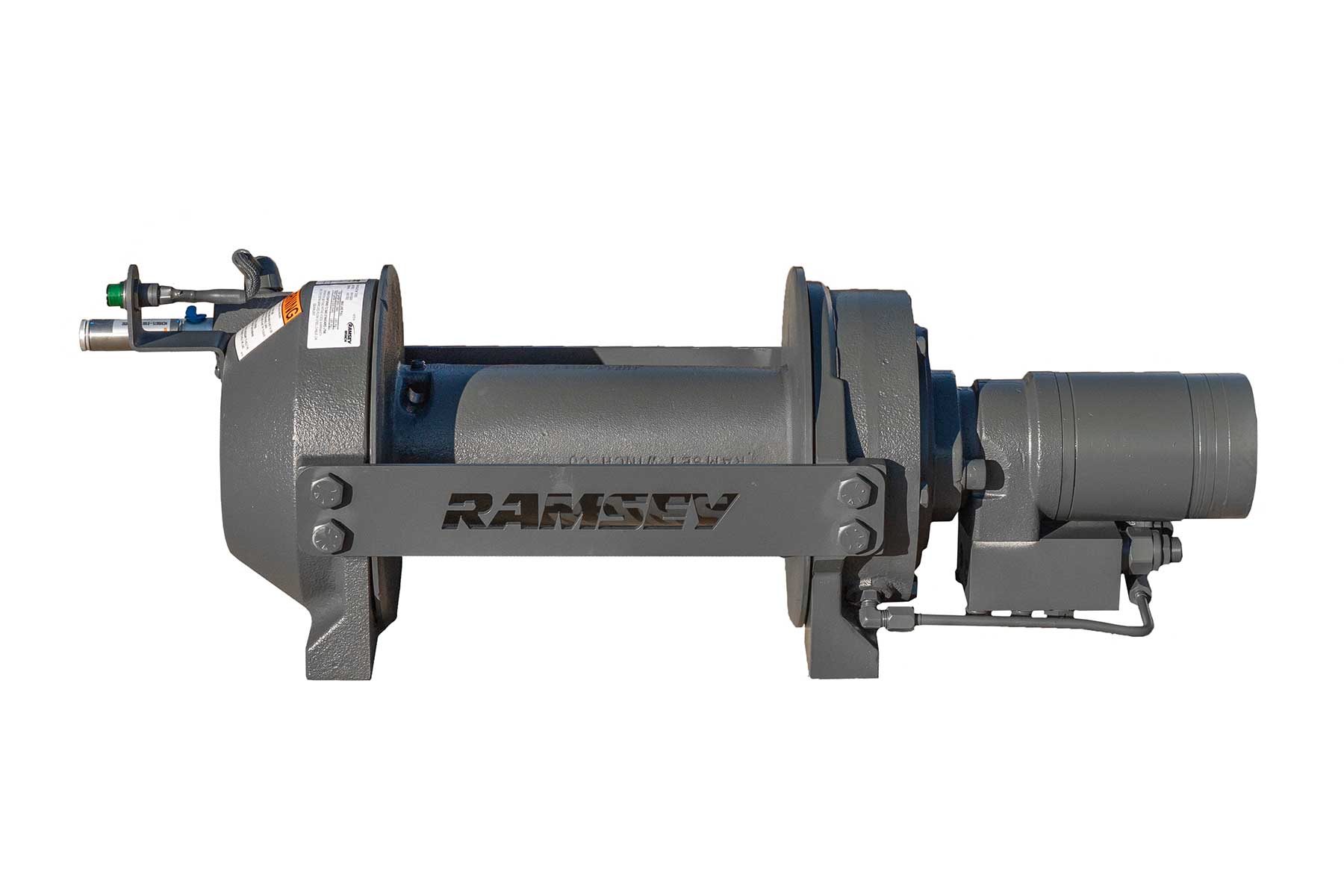

Air Shift

Not available

Manual Shift

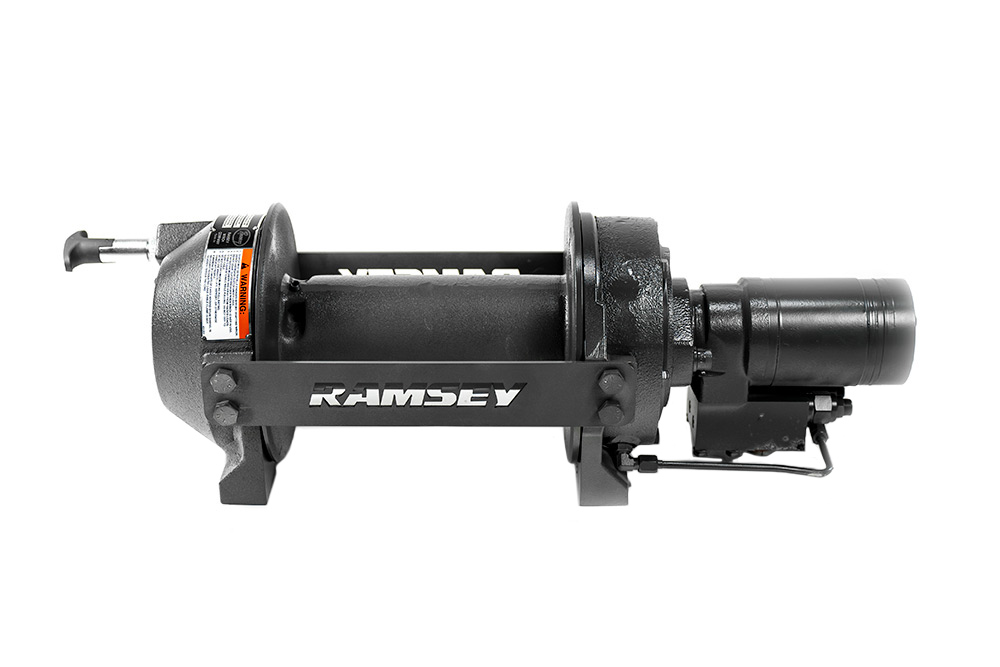

Manual Shift

Not available

SKU: RW-RPH12000

Price: $2,929.99–$3,519.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

This Industrial-Grade Winch features a planetary gear for the fastest line speeds available getting you out of hazardous traffic quicker. Winch has a disc brake for sure-load holding and a free spooling clutch on the driver's side. Use with 9-3/4" drum width and 7/16" x 125' rope capacity.

Rated Line pull 12,000 lbs
Standard Drum
Recommended cable 7/16
Available with air shift (air shift does not include handle)
Meets SAE J706
Made in the USA

Applications
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Heavy Wrecker)
Towing & Recovery (Medium Wrecker)
Trailer
Utility

Specifications
Rated Line Pull: 12,000 Lbs / 5,443 Kg (1st Layer of Cable)
1st Layer Line Speed: 32 Ft/Min / 9.7 M/Min
Gear Ratio: 5.1:1
Weight w/o Cable: 110 Lbs / 50 Kg
Brake: Yes
Cable: None
Drum Size (L x F x B): 9.75" x 9.00" x 3.94" / 247.7mm x 228.6mm x 100.1mm
Cable Capacity: 160 Ft / 48.8 M
Recommend Cable Size: 7/16 In / 11.1 MM
Hydraulic Pressure Required: 2,500 PSI (172 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 24.0 Cu. In. (393 cc)
Additional Motor Options: None
Clutch Type: Sliding Pin
Clutch Control: Air, Manual

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	STYLE
RW-123302	RW-123302	Air Shift
RW-123301	RW-123301	Manual Shift
