SaltDogg 10Ft Municipal Hydraulic Conveyor Chain Spreader

Buyers Products SaltDogg Municipal Hydraulic Conveyor Chain Spreader gives municipalities and large contractors a high-volume, heavy duty spreader ready for use with a truck's existing central hydraulic system. The 108 in., 120 in., 144 in., or 168 in. hoppers are designed for 96 in. wide dump bodies and flatbeds with a minimum 26,000 lb GVW (gross vehicle weight) chassis.

The hopper and fully welded frame are made from high quality 304 stainless steel for long lasting corrosion protection. Six heavy duty hinged-top screens with 2-1/2 in. openings help break up clumps of material during bulk loading.

A high-flow 24-1/2 in. wide steel pintle chain conveyor provides a high speed material flow. The stainless steel inverted V reduces stress on the drive line to reduce wear and improve flow. A screw jack adjustable feed gate offers additional material flow control.

The conveyor is driven by a hydraulic motor with your choice of a 25:1 or 50:1 worm gear box, or a 6:1 spur gear box. The heavy duty driveline is built with a 2 in. drive shaft and a 1-1/2 in. spring loaded idler shaft with bearings and 8-tooth sprockets.

The spreader is equipped with a 20 in. poly spinner or an optional stainless steel spinner. It can spread material 2 to 40 ft. The baffles and spinner chute height are adjustable to suit your application. The chute and spinner assembly flips up or detaches completely for convenient bulk unloading, easy servicing, and access to towing.

Hydraulic spreader controls are sold separately. A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS. See Related Products below.

SD-14510F576111: Capacity 7.00 yd, Gearbox Ratio 6:1, Hopper Length 120", 10FT

SD-14510F636111: Capacity 8.40 yd, Gearbox Ratio 6:1, Hopper Length 120", 10FT

SD-14510F696111: Capacity 9.50 yd, Gearbox Ratio 6:1, Hopper Length 120", 10FT

Designed for dump bodies and flatbeds with a minimum 26,000 lb GVW (gross vehicle weight)

Available with 9', 10', 11', 12' and 14' hoppers with a capacity from 6.5 to 14 cubic yards

Hydraulic power with two independent motors for conveyor and spinner operation. Your choice of three gearbox ratios

Spreads bulk salt, bulk sand, and 50/50 salt/sand mix

Hydraulic spreader controls sold separately with variety of options available

20 in. poly spinner broadcasts up to 40 ft, using with a height adjustable chute

Versatile 24 in. wide chain conveyor drive

Stainless steel, adjustable inverted V reduces stress on the drive line and improves flow

High quality, 304 stainless steel construction for optimum corrosion resistance

Heavy duty 3/8 in. hinged top screens with 2-1/2 in. openings

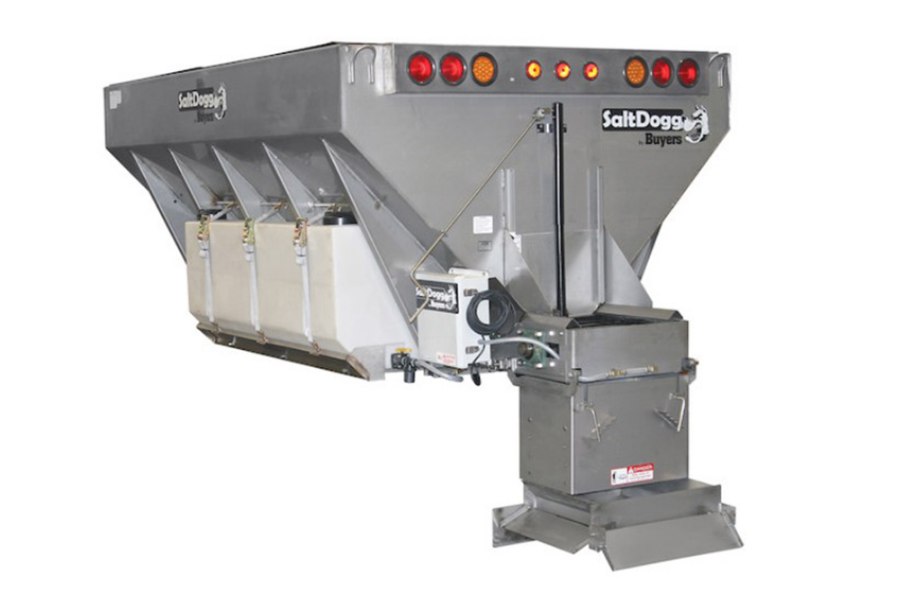

Spreader is shown with optional light bar (8891167) , and pre-wet system (LS4) which are sold separately

Made in the USA
