Description

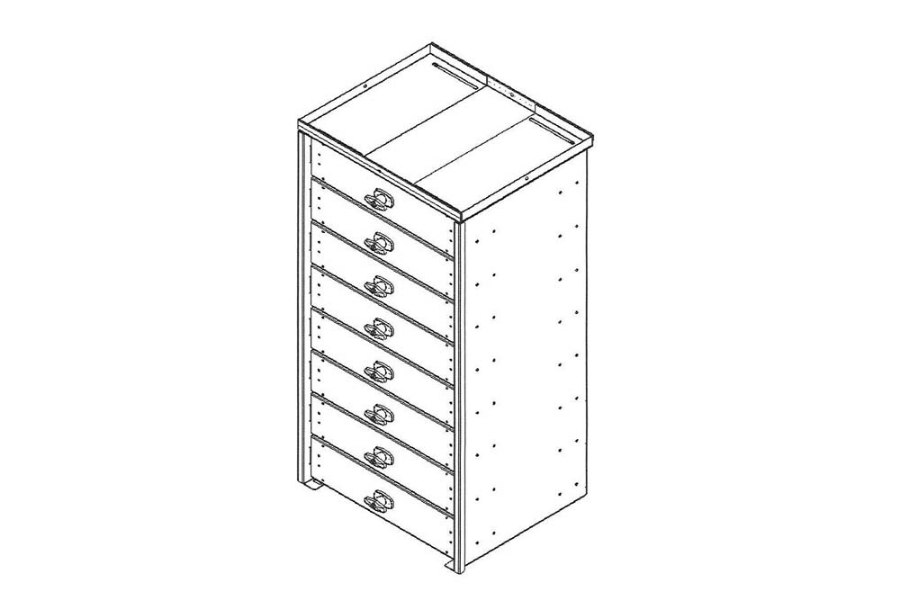

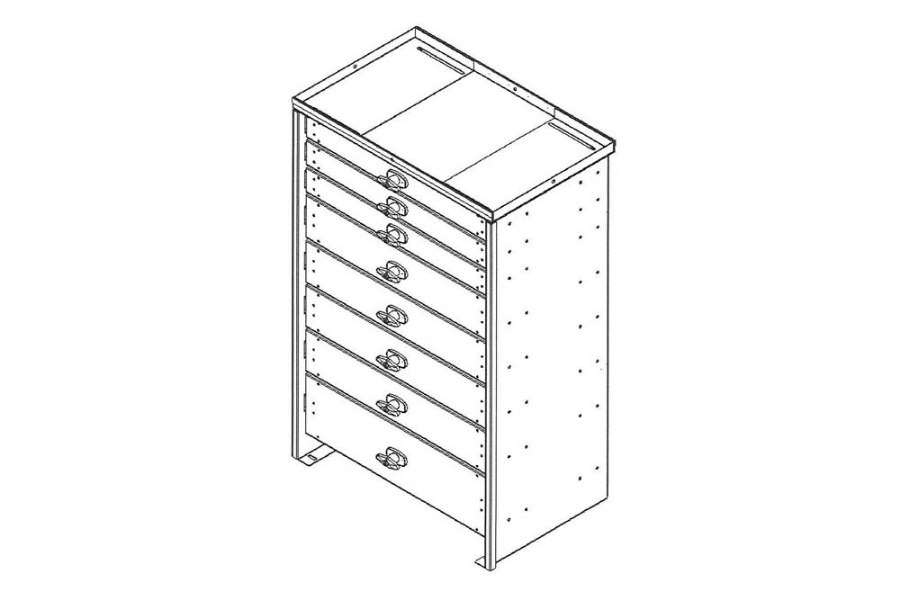

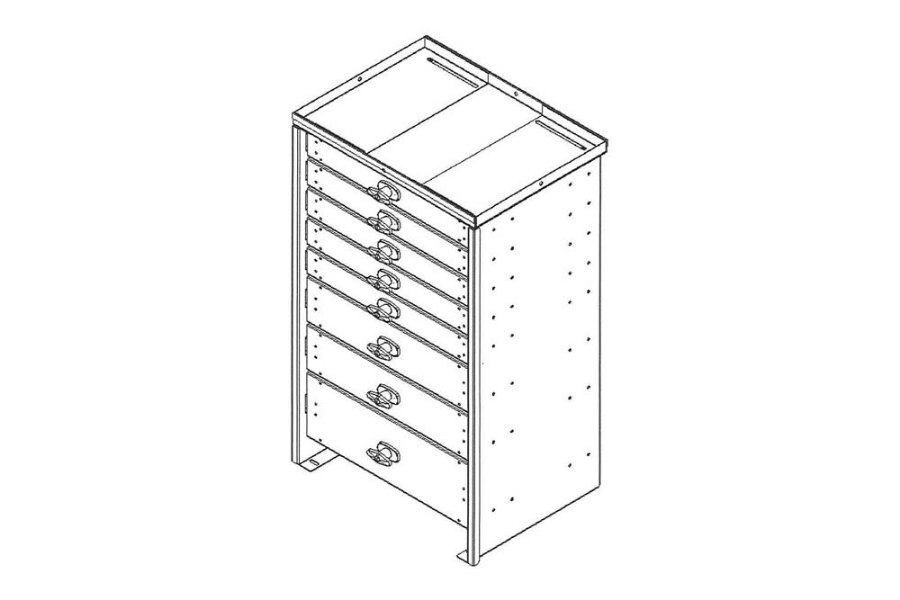

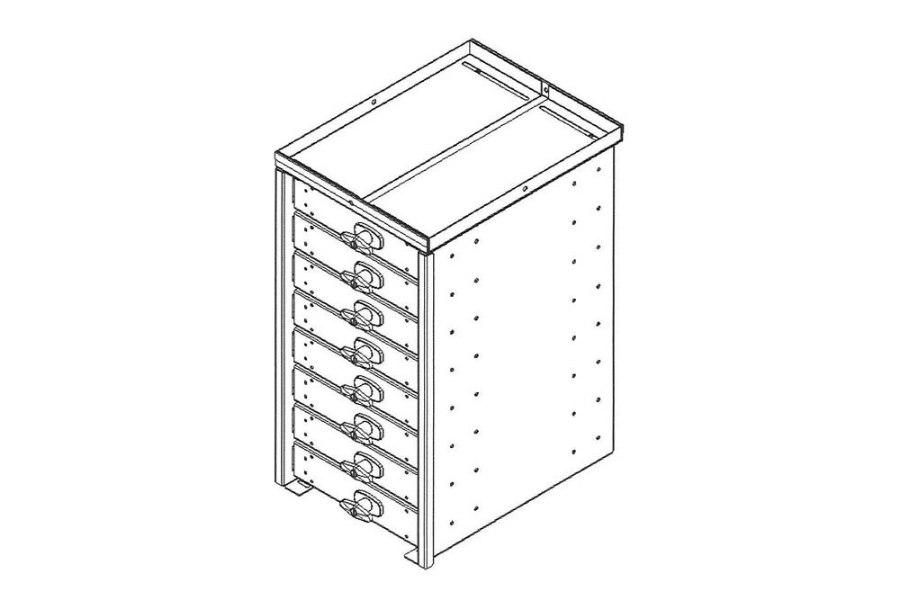

This Stellar (formerly American Eagle) heavy duty steel drawer system has a flat top shelf. Has a .5" or a 2.5" high riser. All drawer widths in the product line utilize our unique key locking T handle. This feature provides a one-handed operation and conceals the latch mechanism for heavy-duty protection and an attractive appearance. Drawer systems are custom-made to your specifications. Each drawer system is engineered to fit your truck s compartment and configured with the drawer sizes that will work best for you.

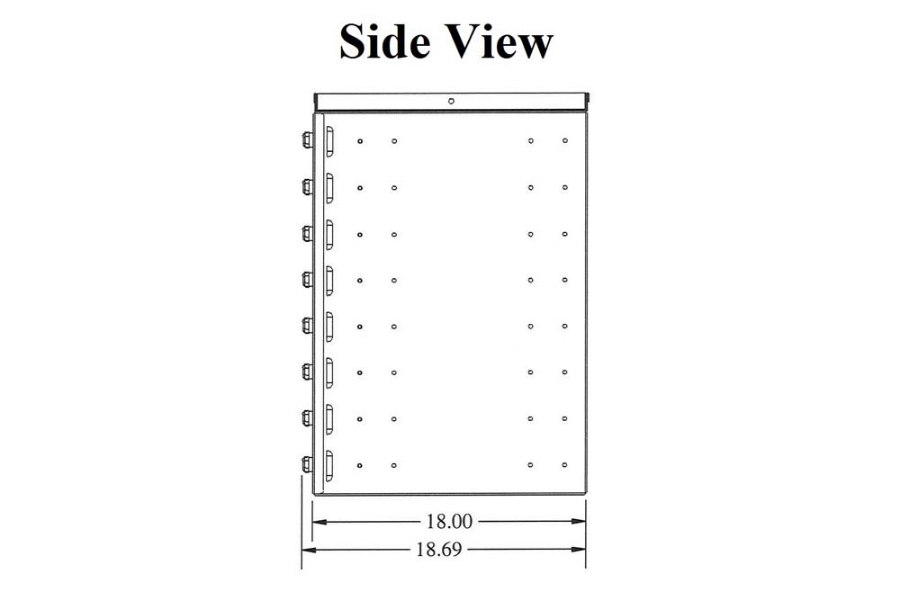

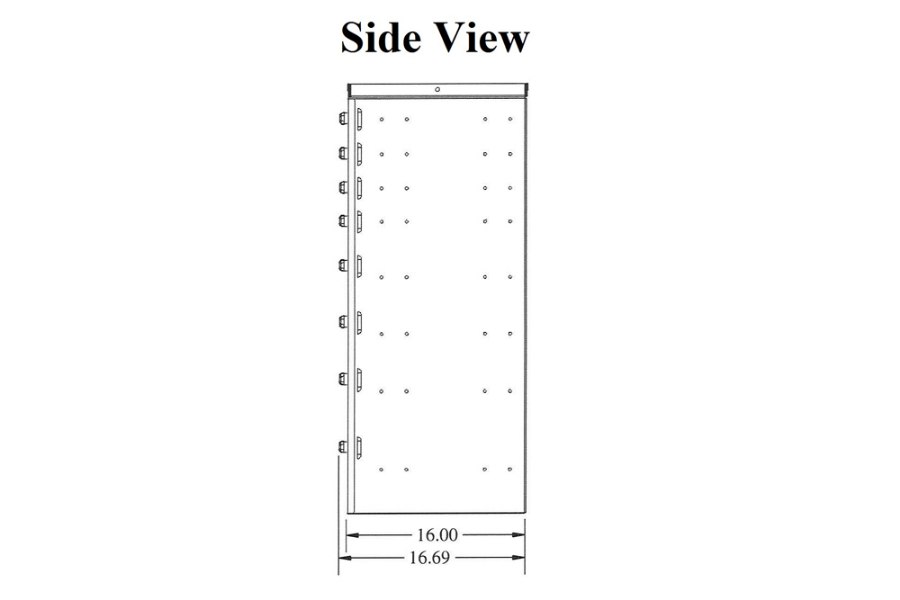

Chart Below Have Actual Dimensions (T-Handle And Risers Not Included In Dimensions) Drop Downs Above Are Rounded Up (Riser and T-Handle Included)

The Toolbox Drawer System Consists of:

Top Shelf

Built-In Risers

Heavy Duty 500 lb. Ball Bearing Slides

Key Lockable Chrome Plated T-Handle(s) With Concealed Latching Hardware

Removable Drawers

Gray Powder Coated Front Panels and Galvanized Components

Each Drawer Includes Front-To-Back Dividers

Lifetime Warranty (Original Owner) On Slides, Handles, and Latches

Drawer Set Enclosure: 14GA Galvanized Steel

Drawer Pull-Out: 12GA Galvanized Steel

Made in the USA

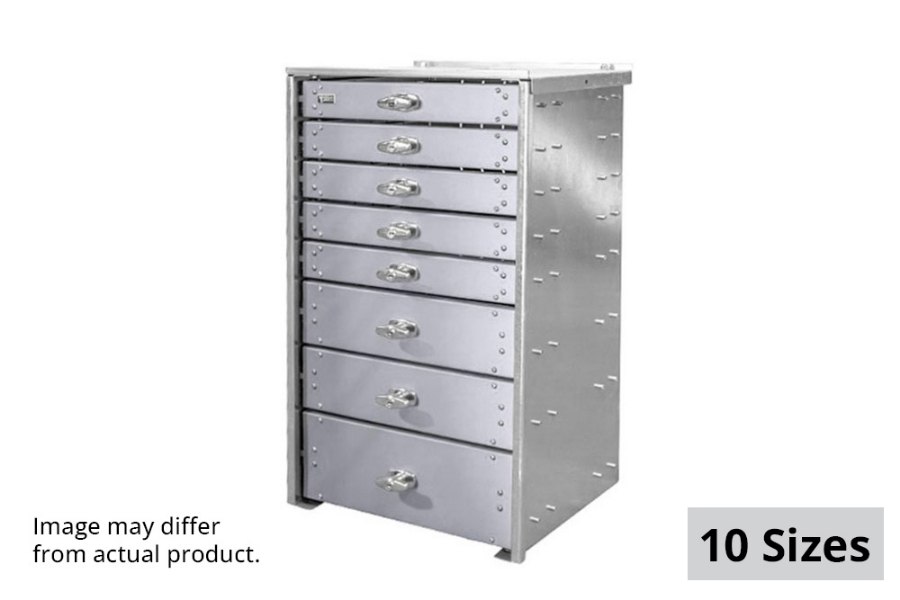

Available below in the actual dimensions (t-handle and risers not included in DIM)

Part #	Height	Width	Depth	Riser	Drawer Size

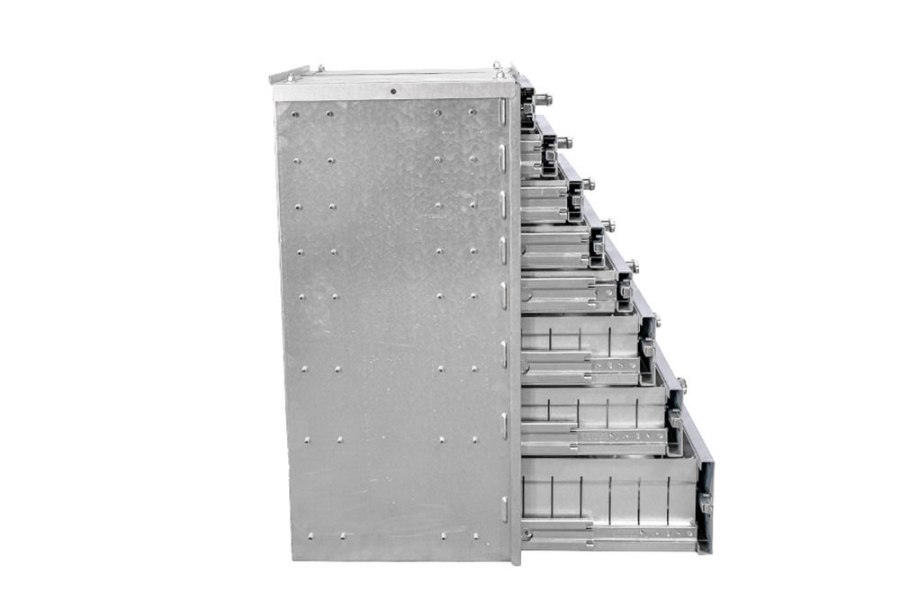

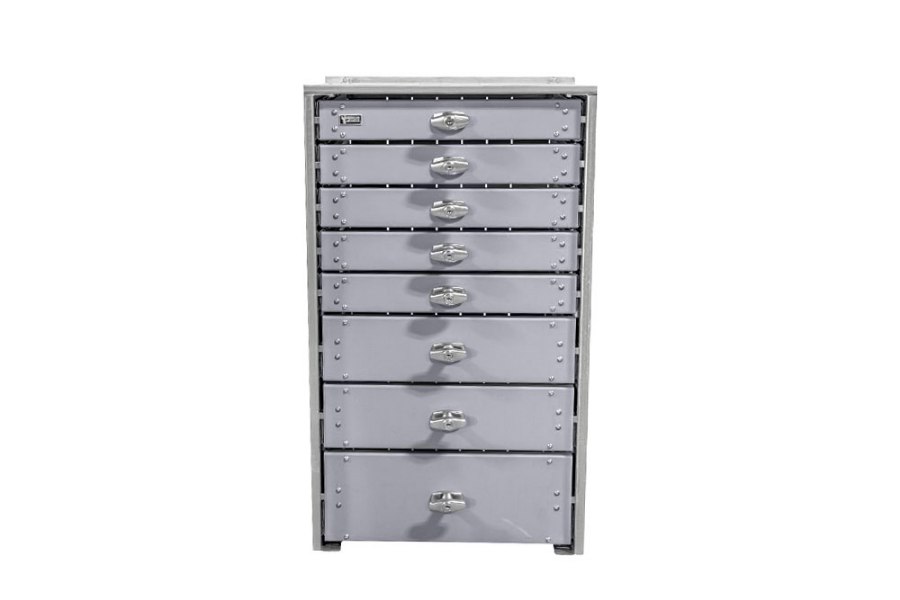

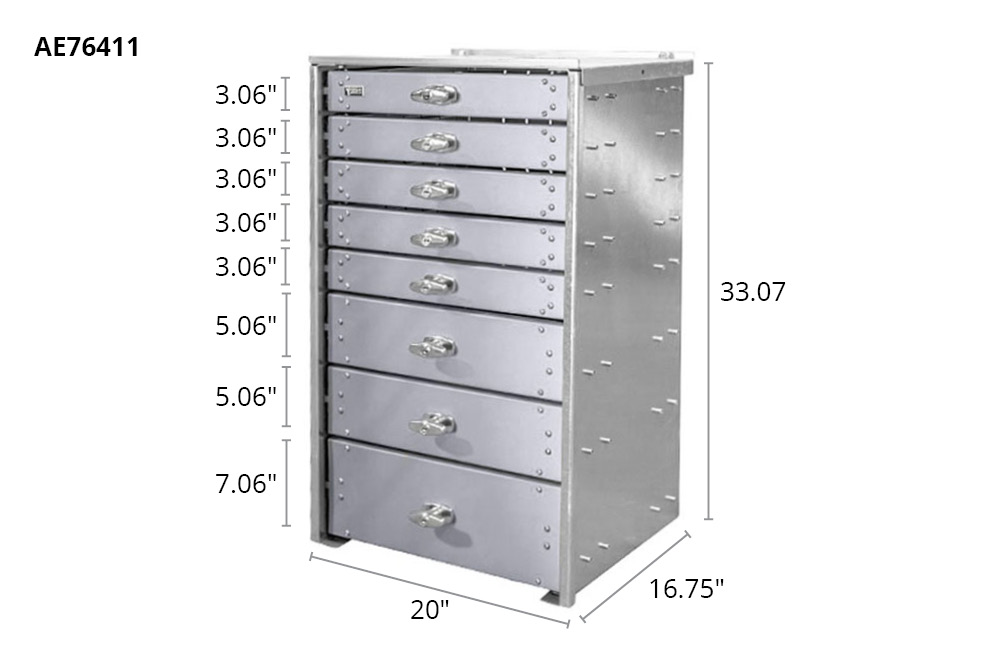

AE76411	34"	20"	16"	.5"	5-3", 2-5", 1-7"

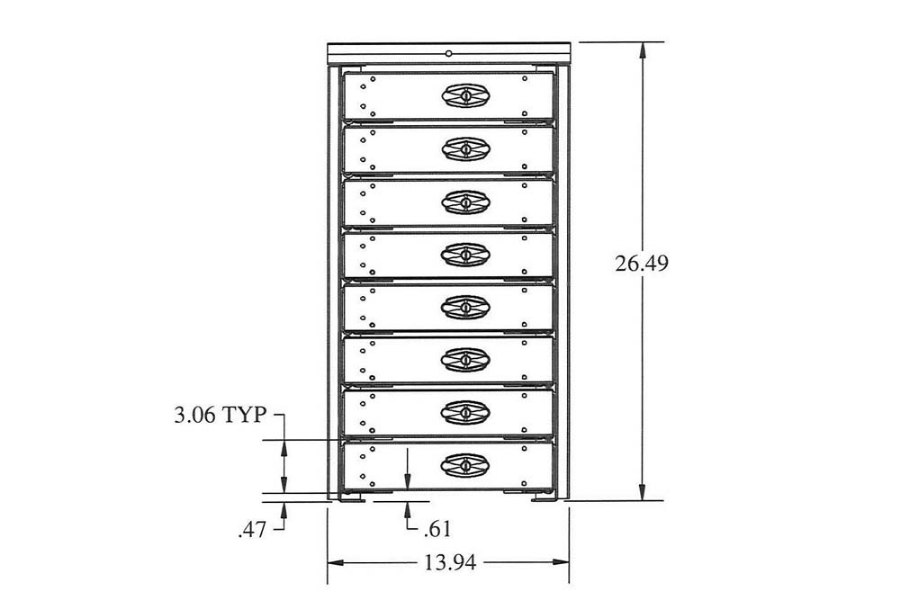

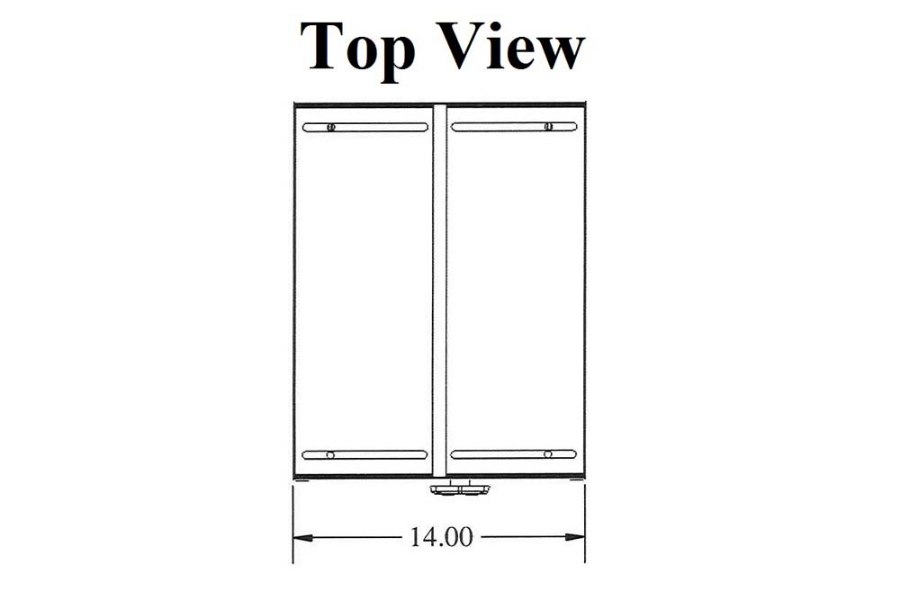

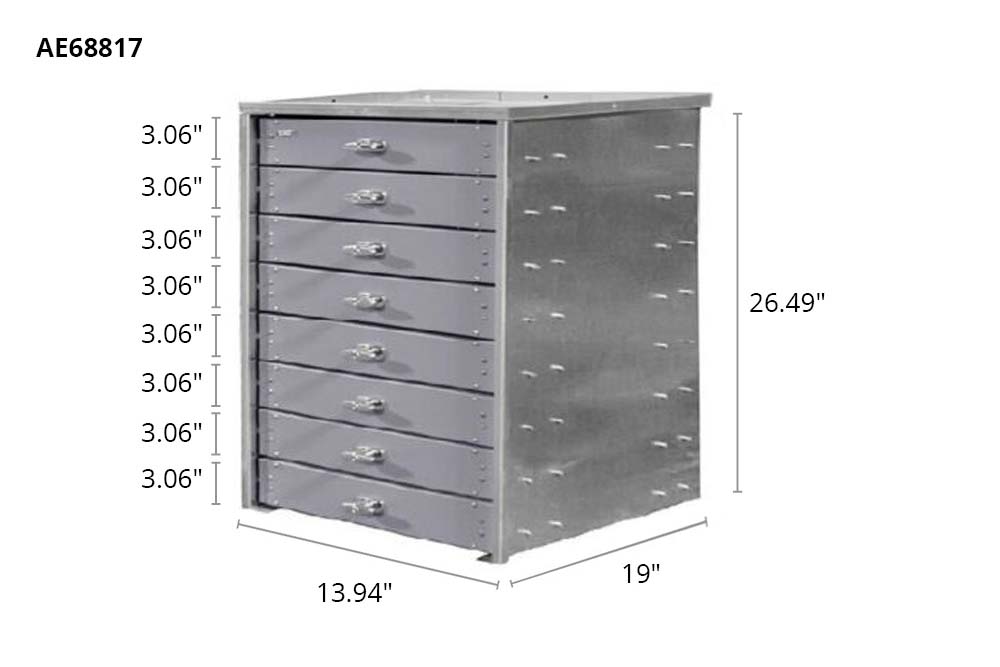

AE68817	26.5"	14"	18"	.5"	8-3"

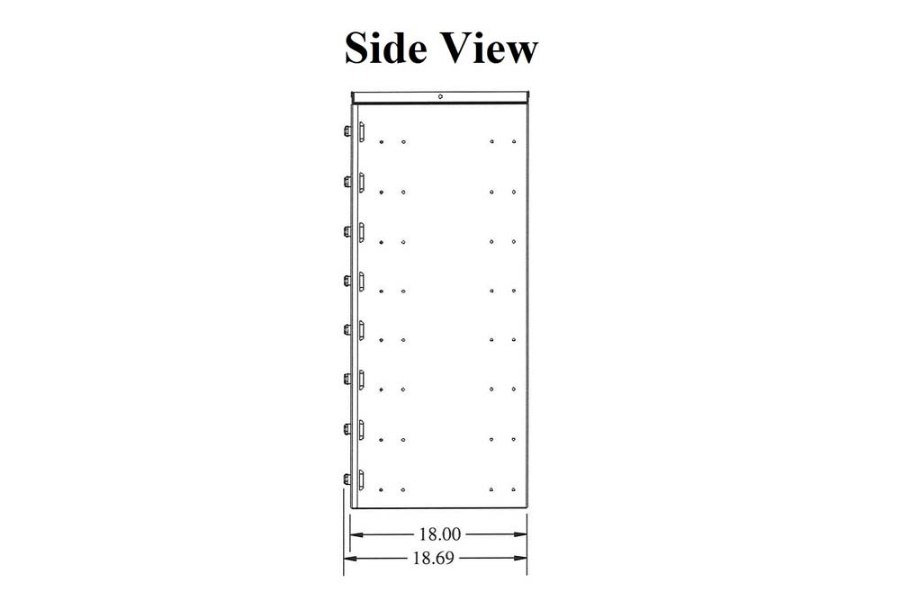

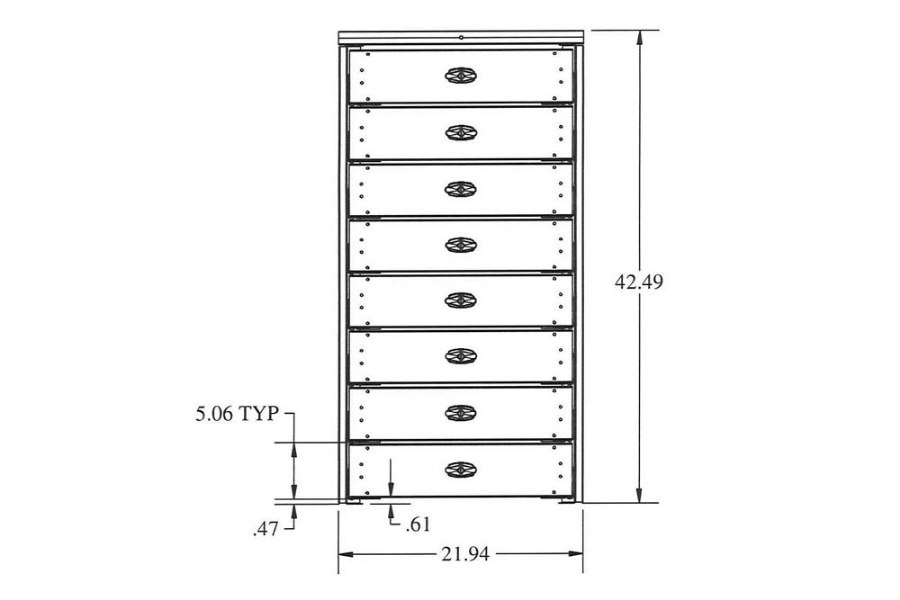

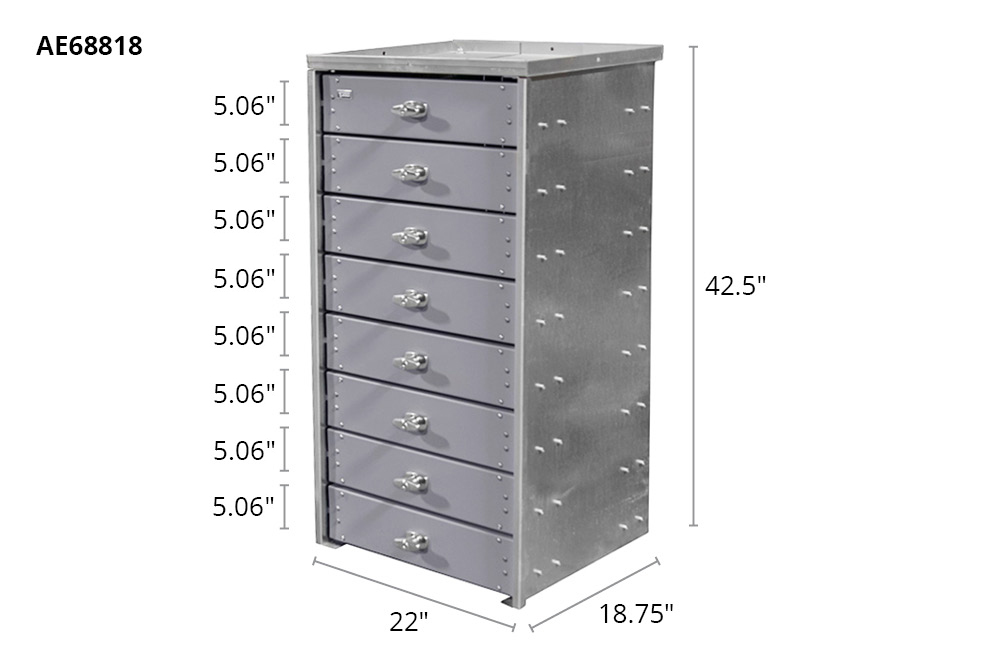

AE68818	42.5"	22"	18"	.5"	8-5"

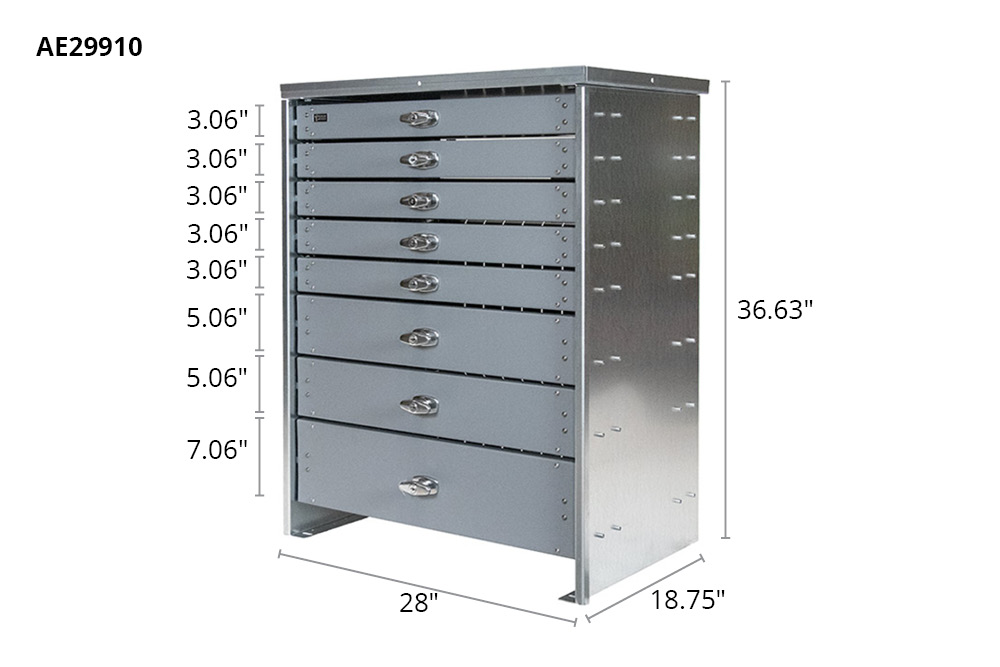

AE29910	37"	28"	18"	2.5"	5-3", 2-5", 1-7"
AE37762	36.5"	24"	14"	2.5"	5-3", 2-5", 1-7"

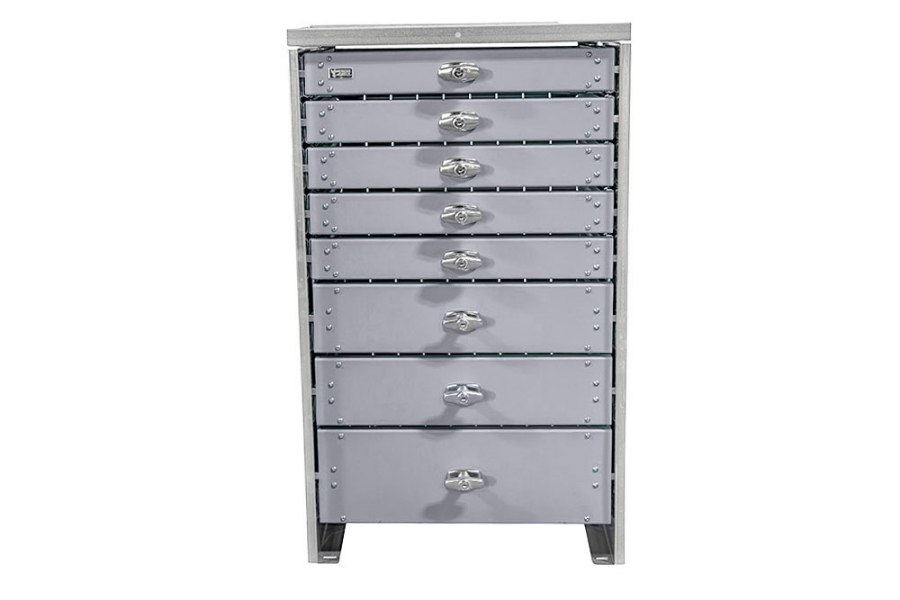

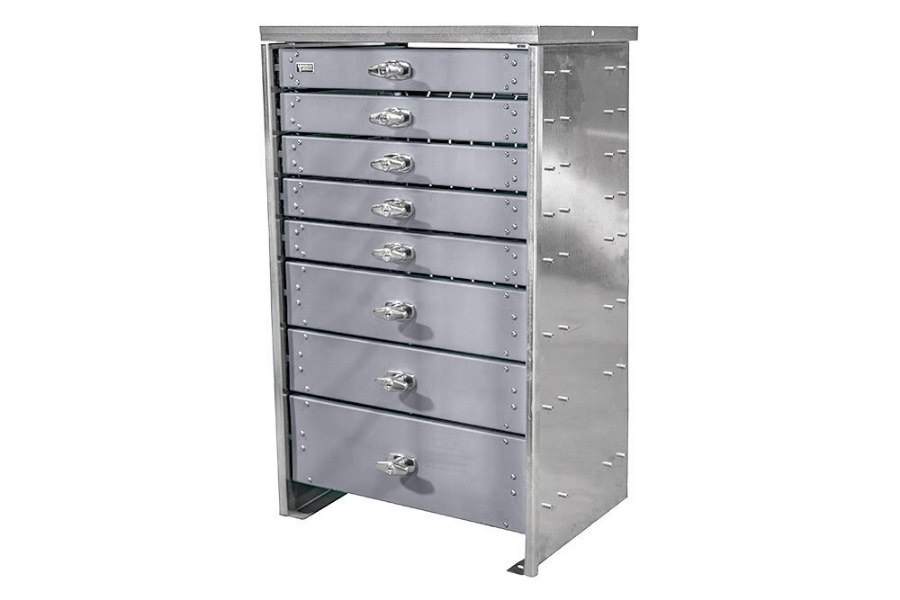

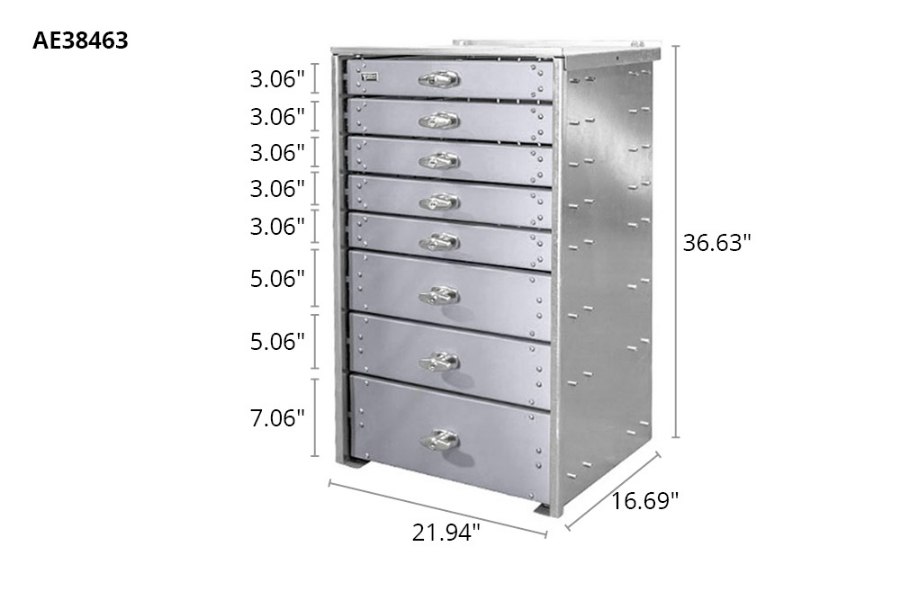

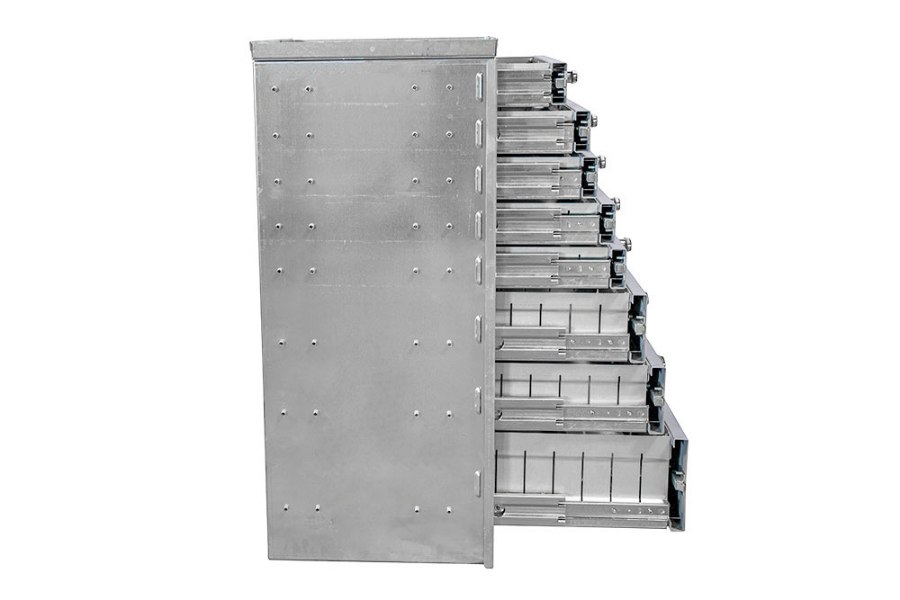

AE38463	36.5"	22"	16"	2.5"	5-3", 2-5", 1-7"
AE41141	36.5"	20"	18"	2.5"	3-3", 2-5", 1-7"

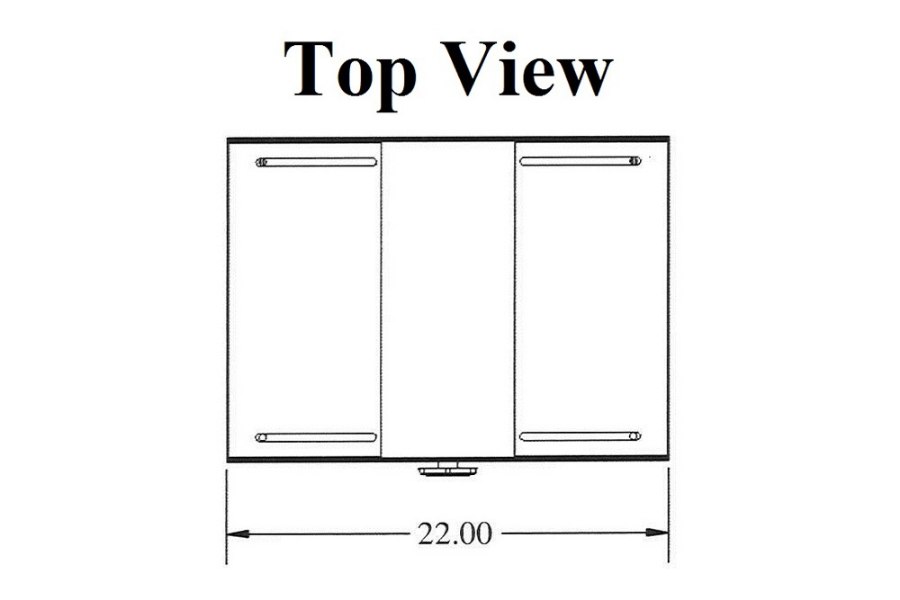

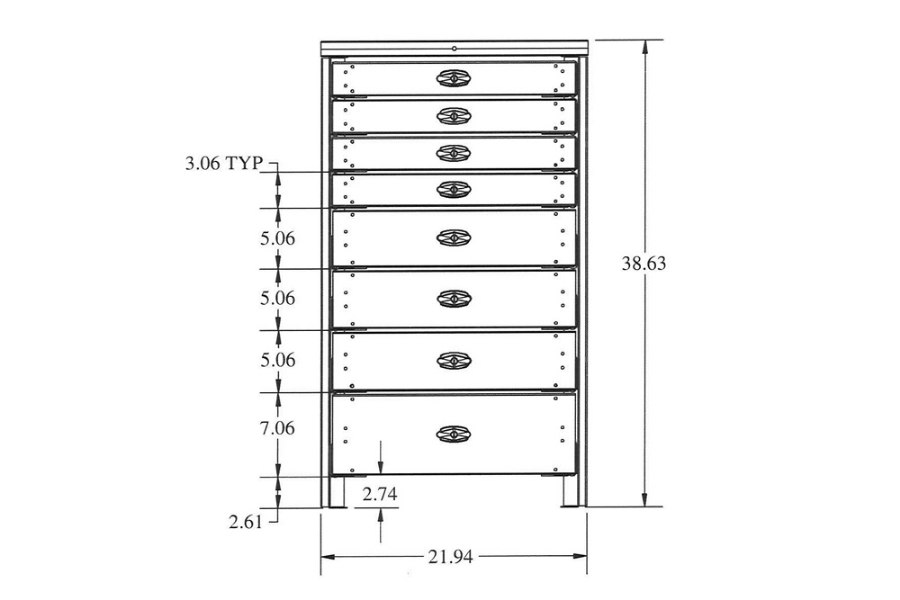

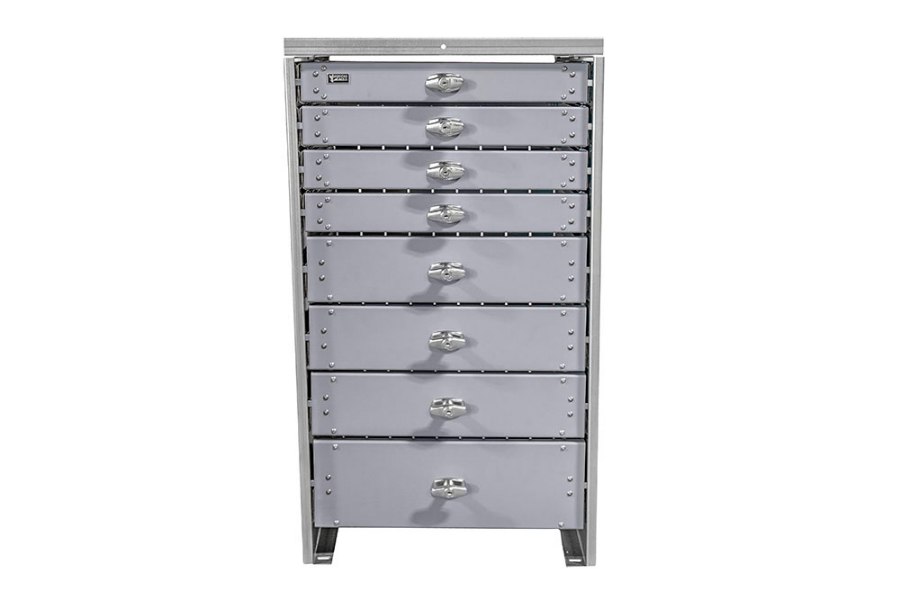

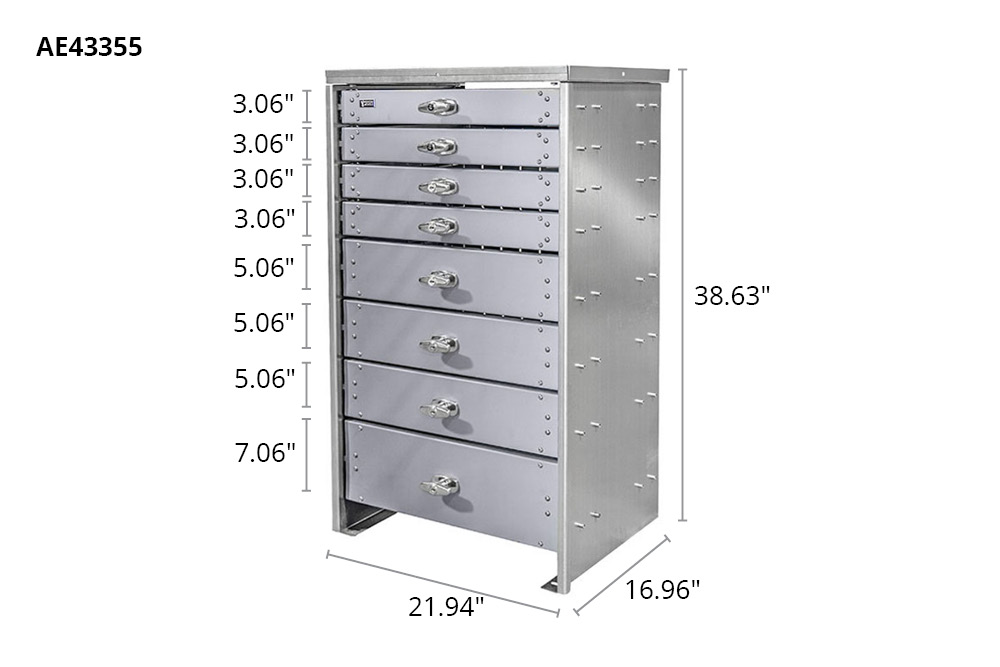

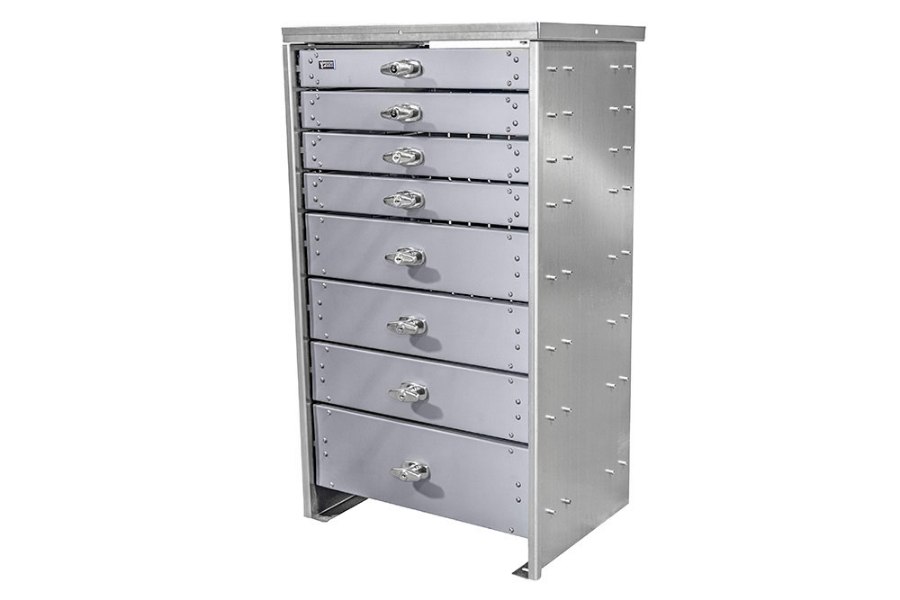

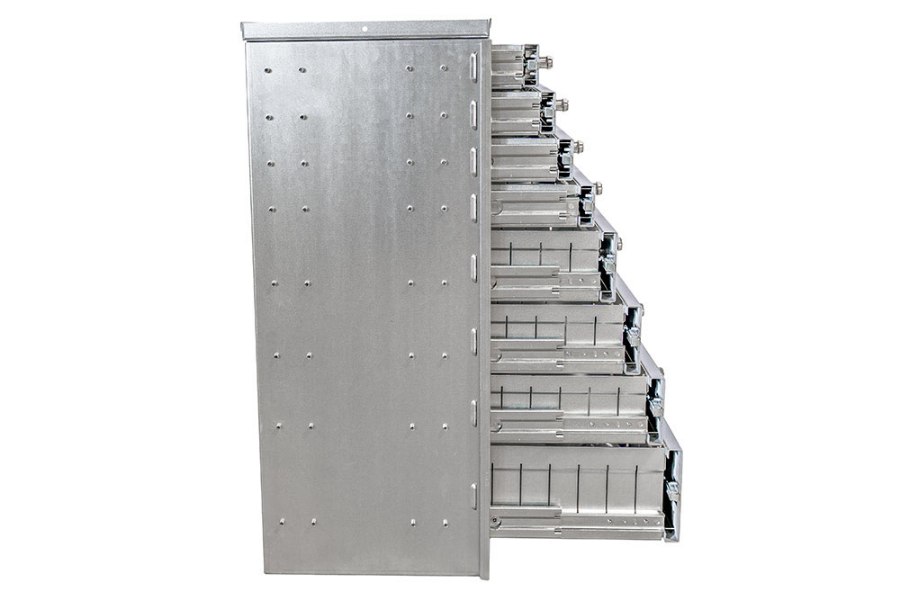

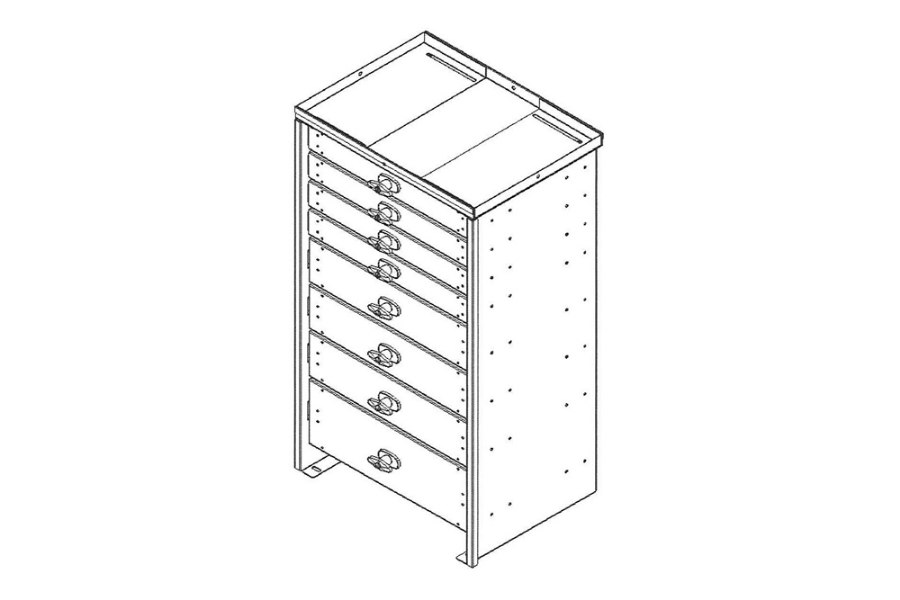

AE43355	39"	22"	18"	2.5"	4-3", 3-5", 1-7"

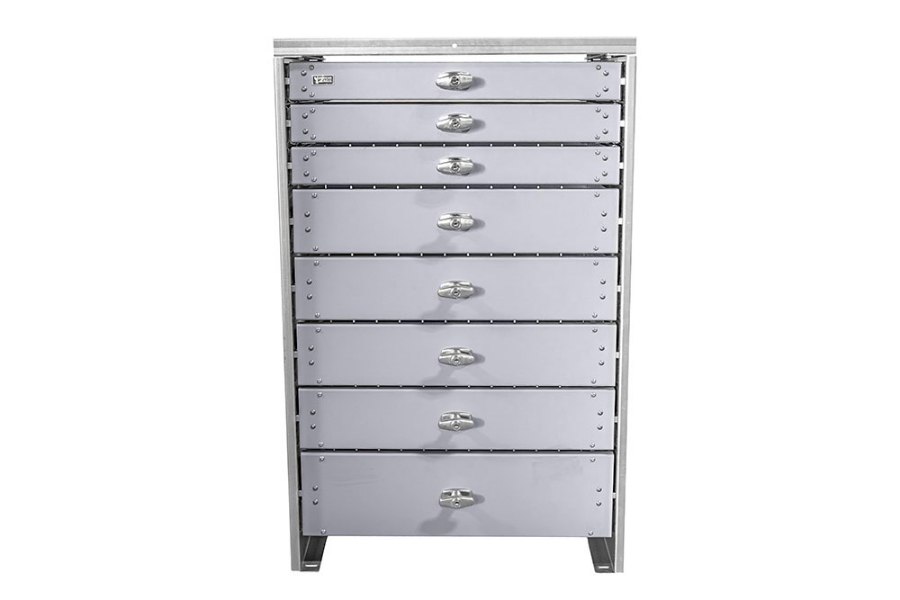

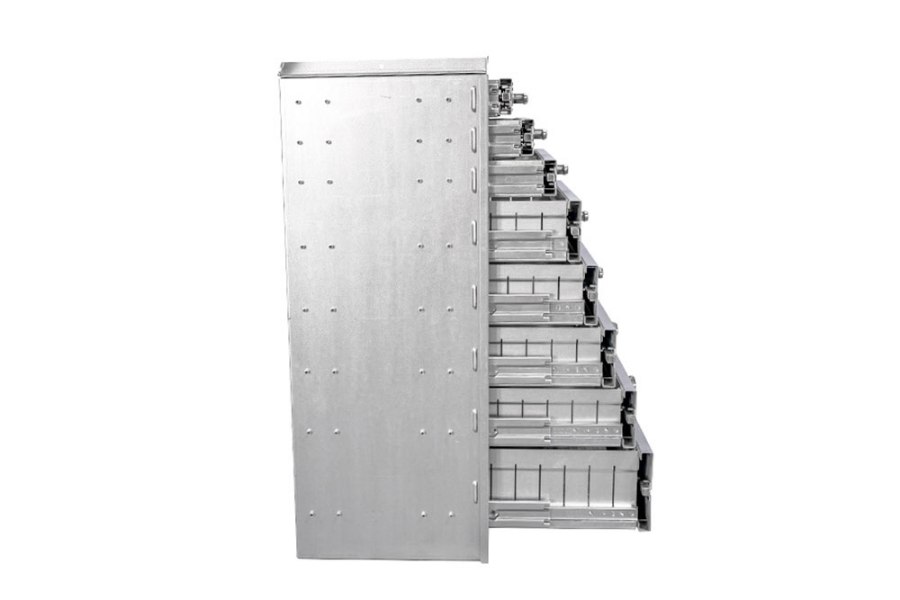

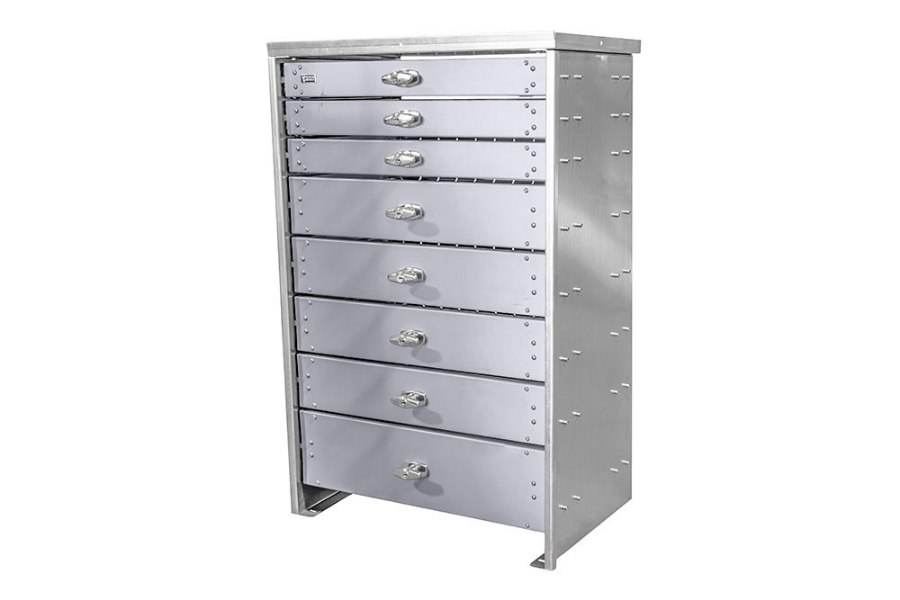

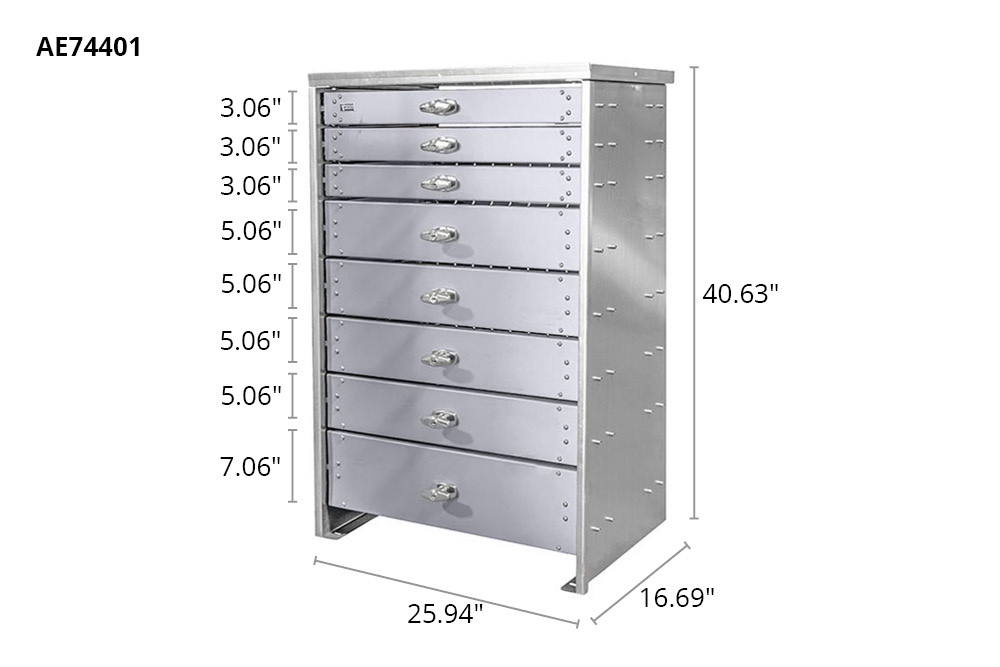

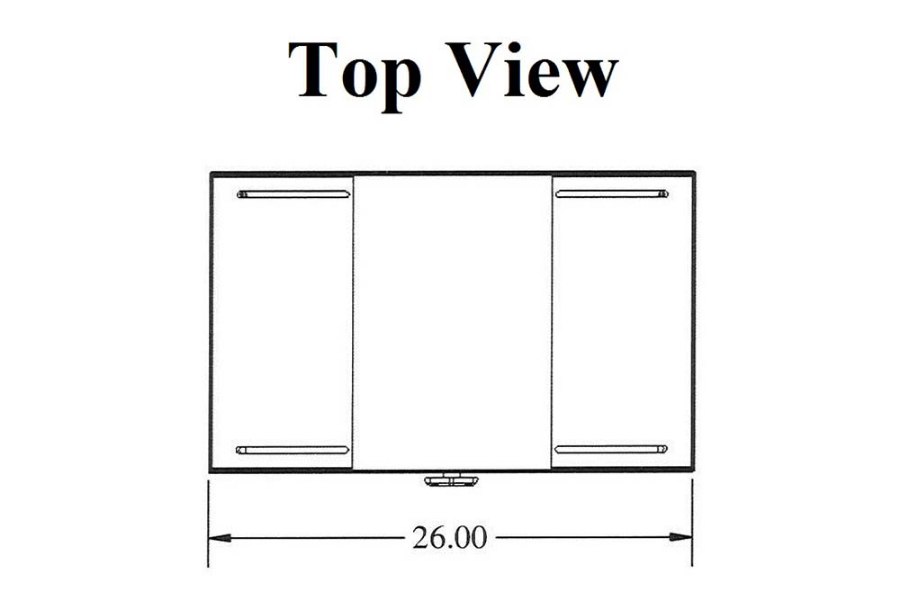

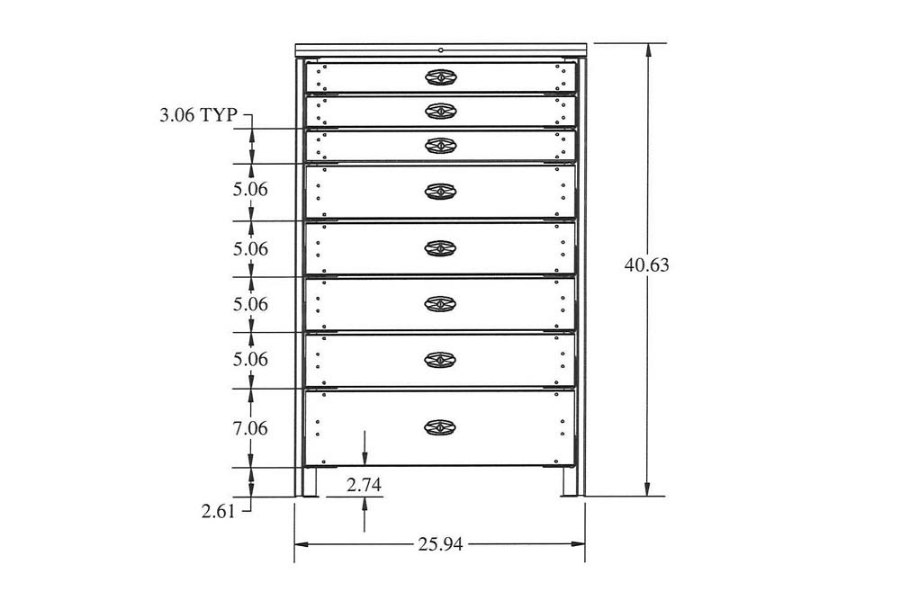

AE74401	41"	26"	16"	2.5"	3-3", 4-5", 1-7"
AE36259	36.5"	24"	14"	2.5"	5-3", 2-5", 1-7"

Shipping & Returns

This product requires truck freight delivery. Standard parcel carriers are not available for this item.

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.
