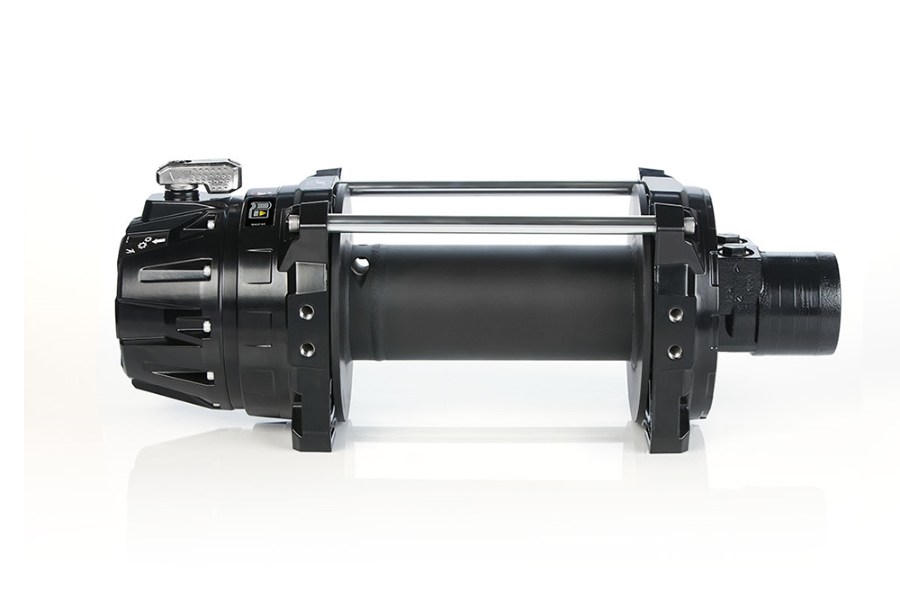

Warn 9 Series Gen 2 9,000 lb. Clockwise Hydraulic Planetary Winch

SKU: WARN-105335

Price: $2,499.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

A special handling fee of $21.00 will be added to this product

Description

Note: Special Handling Fees Apply

This Warn Series 9 hydraulic winch has 9,000 lb. of pulling power. Hardened steel and two-stage planetary gear trains deliver efficient and reliable operation plus fast line speeds. Warn winches are designed for Heavy-Duty Towing and Recovery Operations. They comply with world-wide quality and safety standards. This specific model comes with the 4.9 cu. in clockwise motor and has a pulling force rating of 9,000 lbs., due to the hydraulic motor sizing.

Clockwise, 4.9 cu in motor
Rated pulling force: 9000 lbs. (4082 kg)

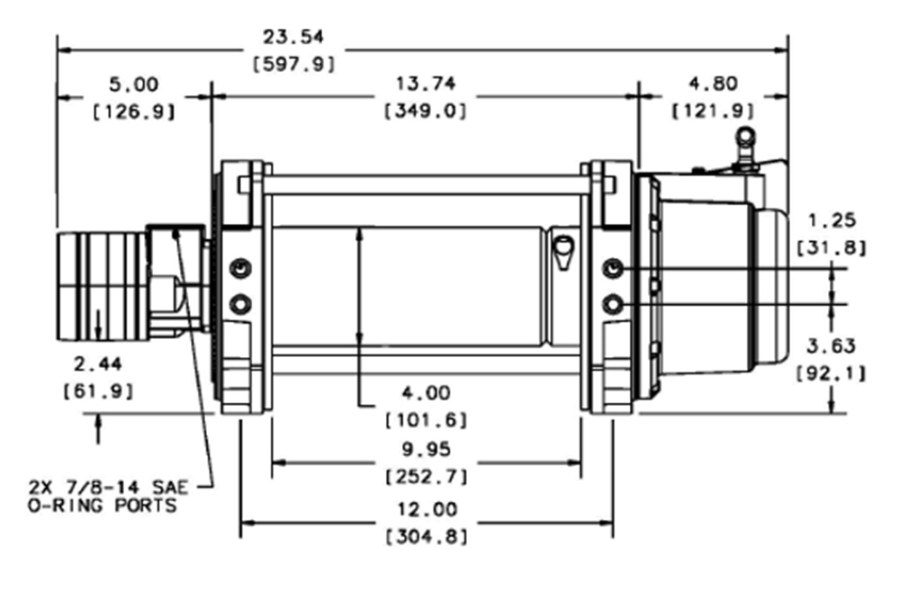

Drum barrel diameter: 4.00 in (102 mm)
Drum flange diameter: 8.24 in (209 mm)
Distance between flanges: 9.95 in (253 mm)
Recommended maximum wire rope diameter: 1/2 in (12.7 mm)
Recommended minimum wire rope breaking strength: 15,100 lbs. (6849 kg)
Approximate shipping weight: 98.0 lbs. (44.5 kg)
Perfect for towing, utility and trailer applications
Heavy Duty automatic disc brake provides dependable operation
Meets SAE J706 CE standards
Wire rope, roller fairlead, and tensioner sold separately
Gear reduction: 27:1
Hardened steel, two-stage planetary geartrain provides faster line speeds
4.9gpm, Clockwise drum rotation
Limited Lifetime Warranty for Mechanical Components
Limited Five (5) Year Warranty for Electrical Components

Specifications
Type: Hydraulic
Mount Type: Vehicle Mounted
Recommended Use: Industrial
Voltage: Not Applicable
Motor Horsepower: Not Applicable
Electrical Control Type: Not Applicable
Thermal Shutoff: No
Drive Gear Type: Planetary
Gear Reduction Ratio: 27:1
Free Spooling: Yes
Brake Type: Disc Brake
Line Diameter (in): No Rope
Line Length (ft): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Conforms To J706 Standards: Yes
Mounting Hole Quantity: 8
Operation Type: Automatic
Mounting Pattern Length (in): 12 Inch
Mounting Pattern Width (in): 4-1/2 Inch
Includes Mounting Hardware: No
Color: Black

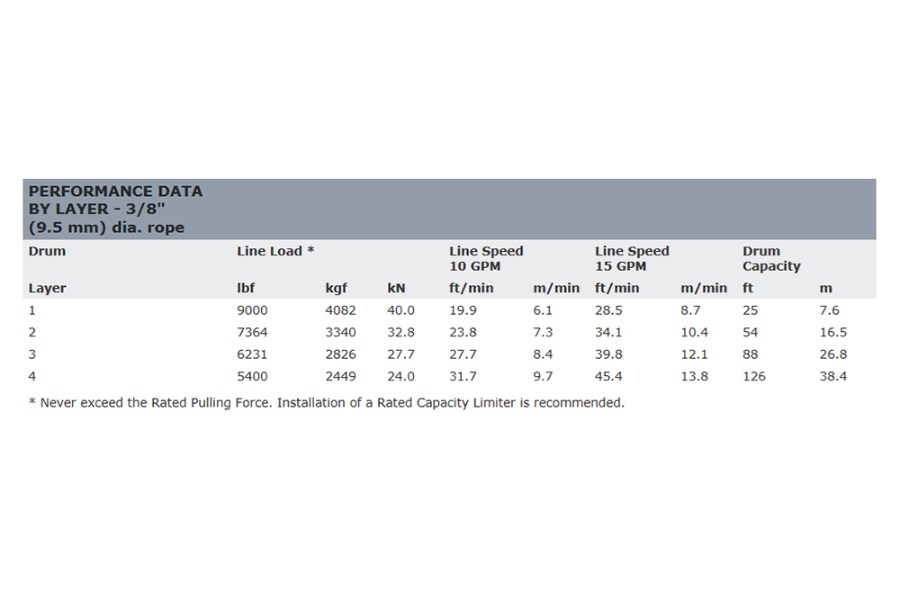

Max Line Pull/Line Speed: 9000 Pound/28.5 Feet Per Minute

Applications
Towing & Recovery
Utility
Trailer
