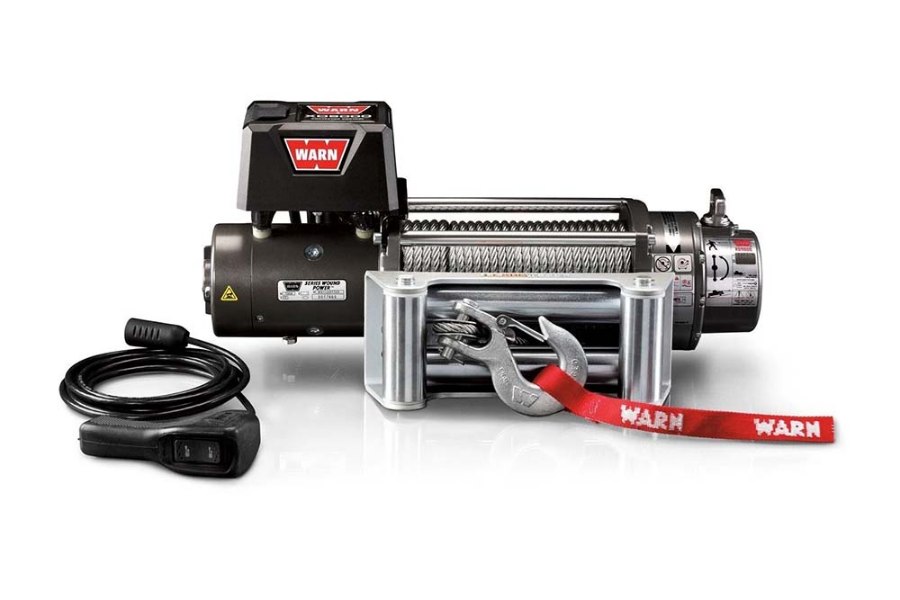

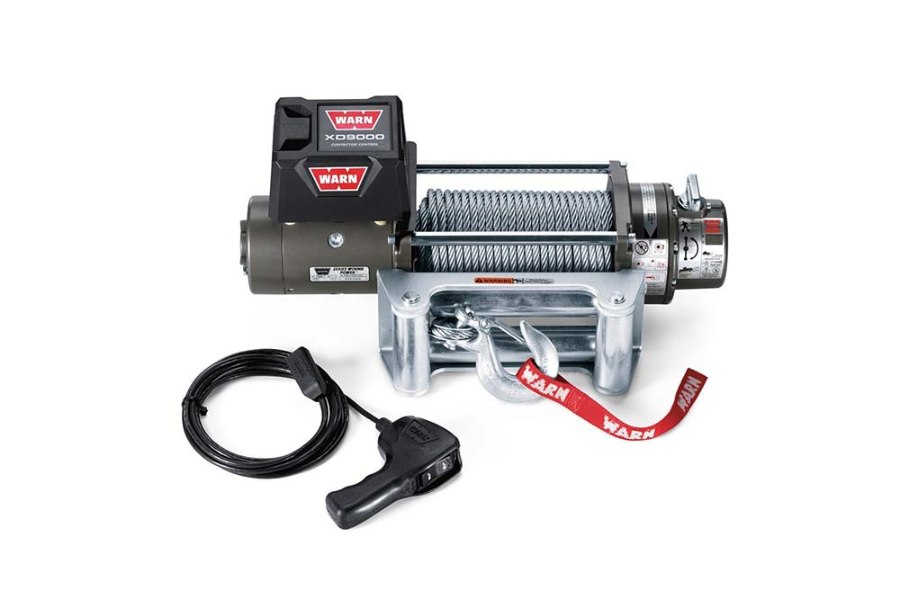

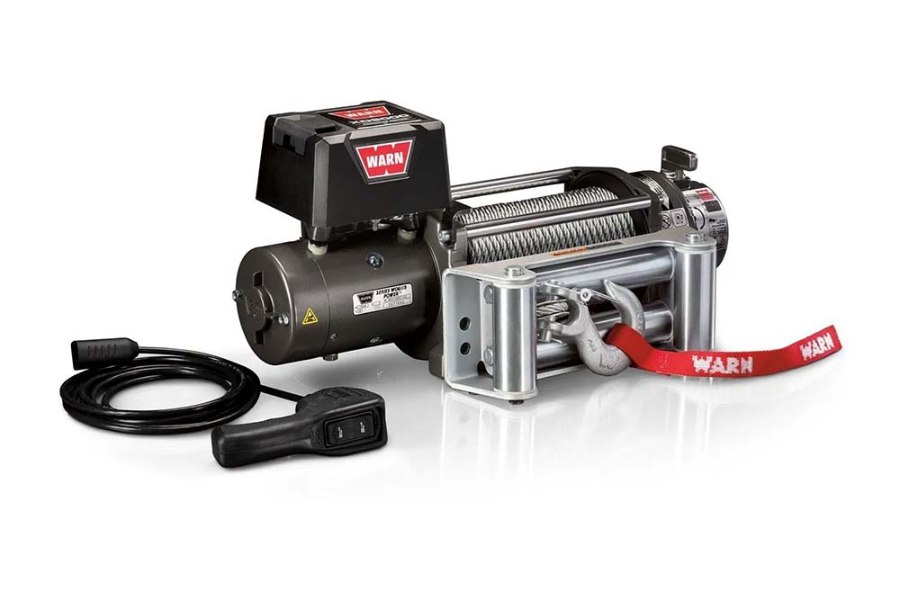

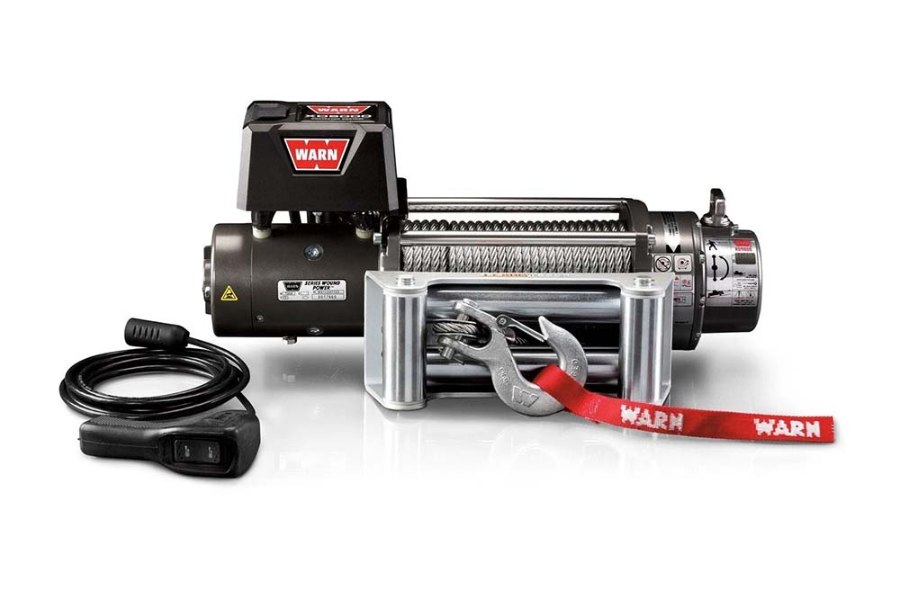

Warn XD9 Winch

Be the first to review this product

SKU: WARN-28500

Price: $2,299.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100' of 5/16" wire rope. Backed by the Warn Limited Lifetime Warranty.

Low-profile design and separate control box allows for a wide range of mounting options
Exclusive brake design provides superior control while winching
Durable 3-stage planetary geartrain for smooth, reliable, operation
Series-wound, high-speed motor provides fast line speed and strong pulls
Chip-resistant, powder-coated finish
Remote control with 12' (3.7m) lead.
Durable 5/16" (8mm) diameter galvanized steel wire rope.
Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specifications

Type: Electric
Mount Type: Vehicle Mounted
Recommended Use: Vehicle Recovery
Voltage: 12 Volt
Motor Horsepower: 4.6 Horsepower
Motor Type: Series Wound
Thermal Shutoff: No
Gear Type: Planetary
Gear Reduction Ratio: 156:1
Free Spooling: Yes
Brake Type: Mechanical Cone
Line Diameter: 5/16"
Line Length: 100'
Line Material: Steel
Fairlead Type: Roller
Remote Type: Handheld Remote Switch
Mounting Hole Quantity: 4
Operation Type: Automatic
Mounting Pattern Length: 10"
Mounting Pattern Width: 4-1/2"
Mounting Hardware Included: No
Max Line Pull / Speed: 9,000 lbs / 3.9 Feet Per Minute
Max Amp Draw / Line Pull: 478 Amp Draw / 9,000 lbs

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	GTIN #
WARN-28500	28500	0012748285007
