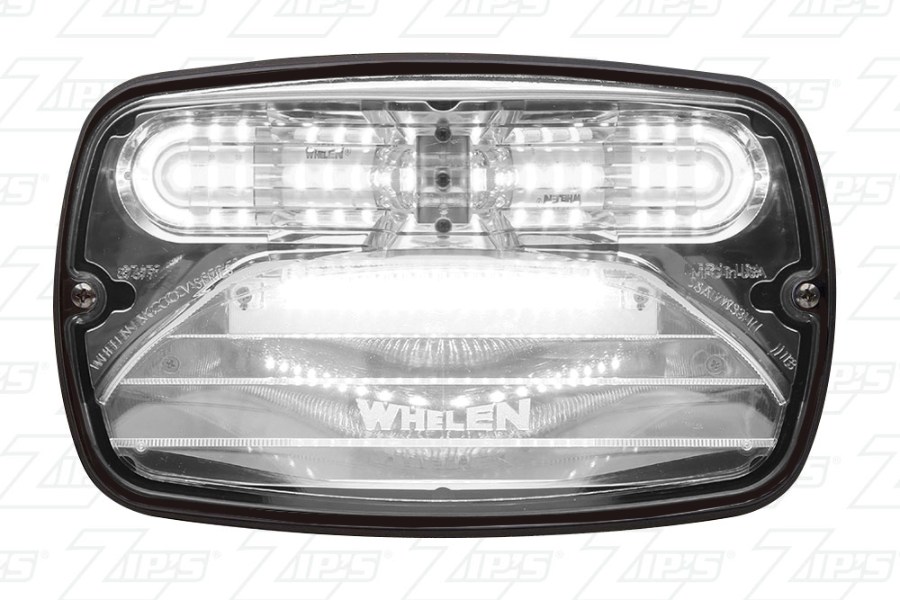

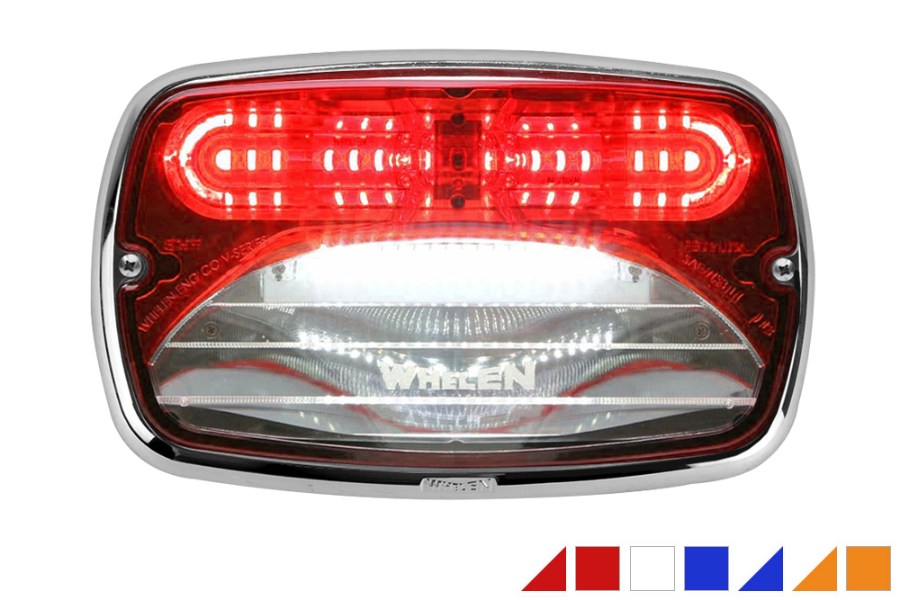

Whelen M9V2 Series Combination Warning and Scene Light

Be the first to review this product

Choose COLOR *

SKU: M9V2LIGHT

Price: $756.99–$832.99

Buy now, pay later with

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

This combination light is a warning light and a perimeter light with a split color (color/clear) non-optic polycarbonate lens. The warning light consists of four PC boards containing three red Super-LEDs on each PC board. The warning light PC boards will be installed on a V-shaped mounting bracket.

Single color LED warning light and a perimeter light with a split color (color/clear) non-optic polycarbonate lens
Warning light consists of four PC boards containing three color Super-LEDs on each PC board
The warning light PC boards will be installed on a V-shaped mounting bracket
Two sets of three color Super-LEDs are installed on the main PC board to the left and right sides of The V-shaped bracket
Clear V-shaped optic collimator and metalized reflector will be installed over the PC boards for maximum illumination
The scene light consists of 18 clear Super-LEDs installed on the main PC board
The scene light will be furnished with a clear optic collimator and metalized angled reflector for supreme radiance
The warning light includes an internal flasher with 25 Scan-LockT flash patterns including low power and steady burn
The M9V2R also provides a synchronize feature
The M9V2R warning light meets KKK 1822F, NFPA 1901, and NFPA 1917 specifications
The M9V2R perimeter light meets AMD 024 with two M9V2R on each side of the vehicle and NFPA 13.10.1.2 for one M9V2R up to six feet
The lens/reflector assembly is sealed and resistant to water, moisture, dust, and other environmental conditions
The hard coated lens provides extended life/luster protection against UV and chemical stresses
The light engine is installed at the rear of the unit and is vacuum tested to ensure proper sealing
The PC boards shall be conformal coated for additional protection
The M9V2R is furnished with 12" unterminated pigtails
Rubber gasket, screws, and screw grommets are included for installation
The M9V2R, with the aid of two screws, and has the ability to be installed as a surface mount light
The warning light is covered by a five year factory warranty
Additional mounting options are purchased separately
12v
10-2/5"L x 6-1/2"H x 2-3/5"D

Shipping & Returns

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	Color

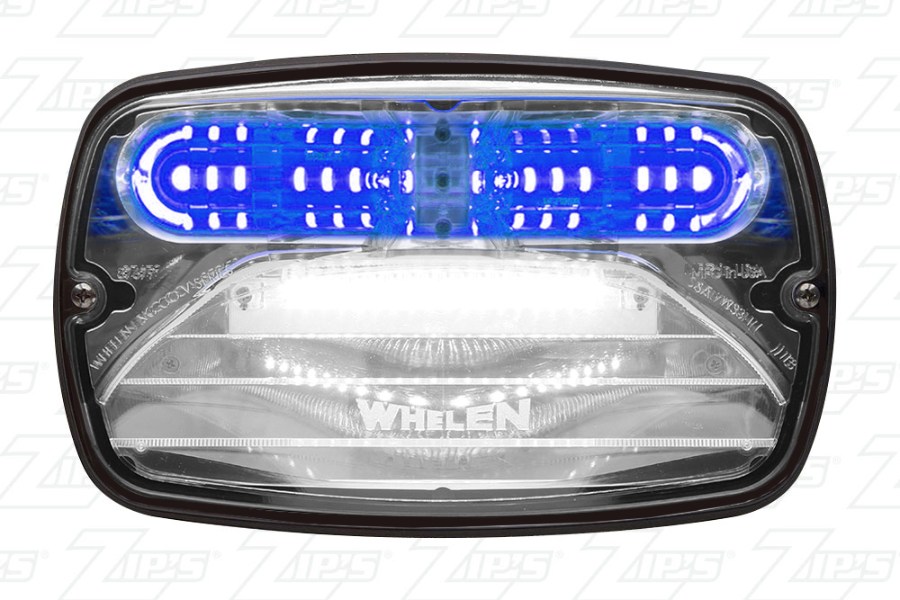

M9V2BC	M9V2BC	Blue w/ Clear Lens

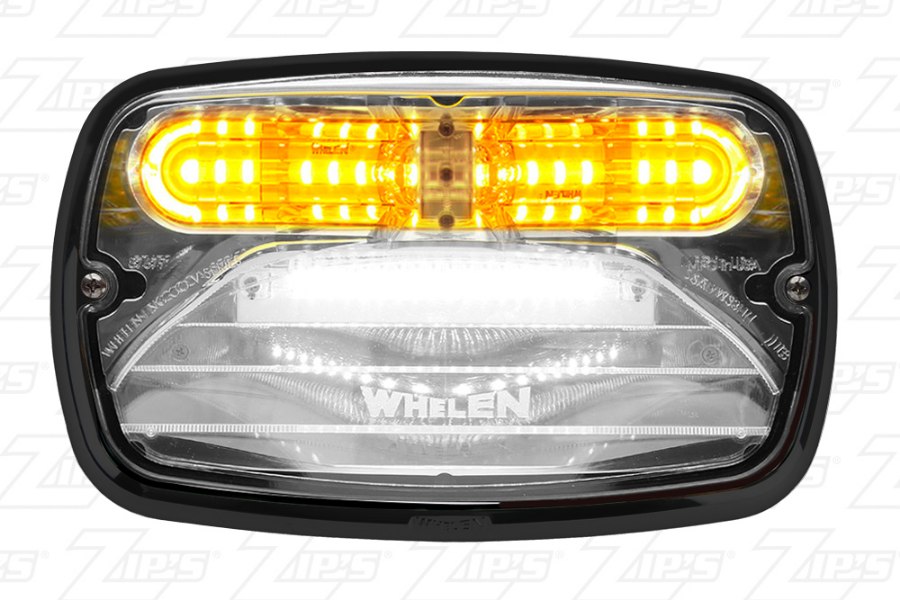

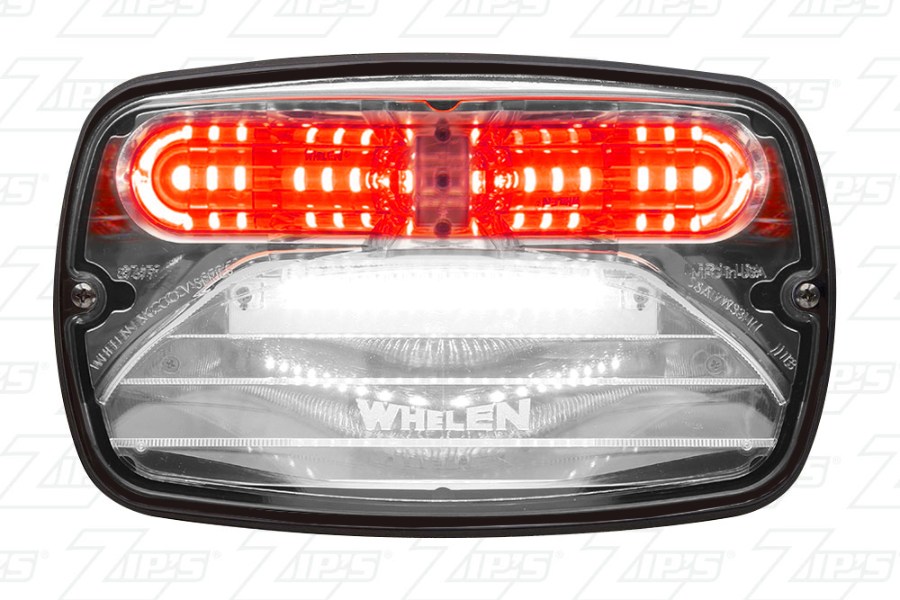

M9V2AC	M9V2AC	Amber w/ Clear Lens

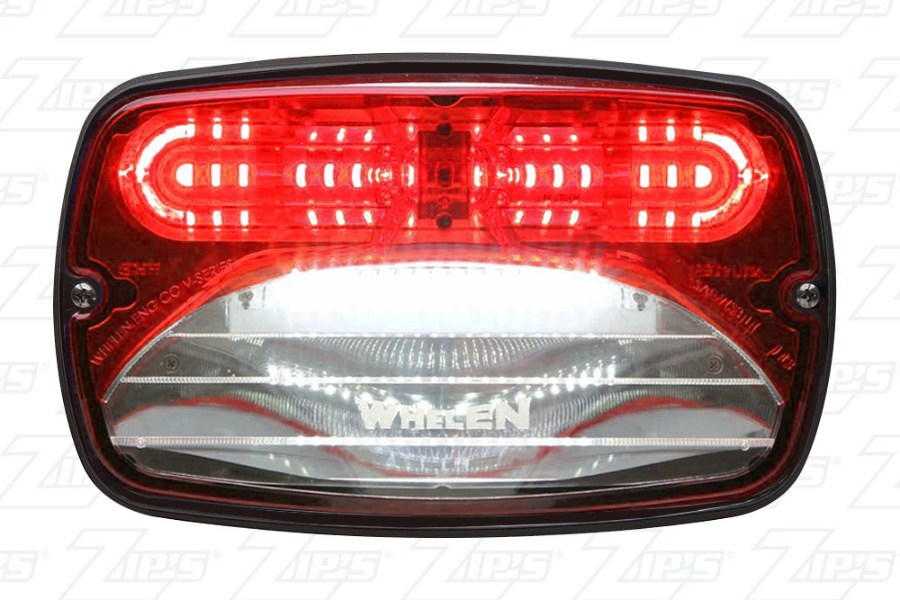

M9V2R	M9V2R	Red

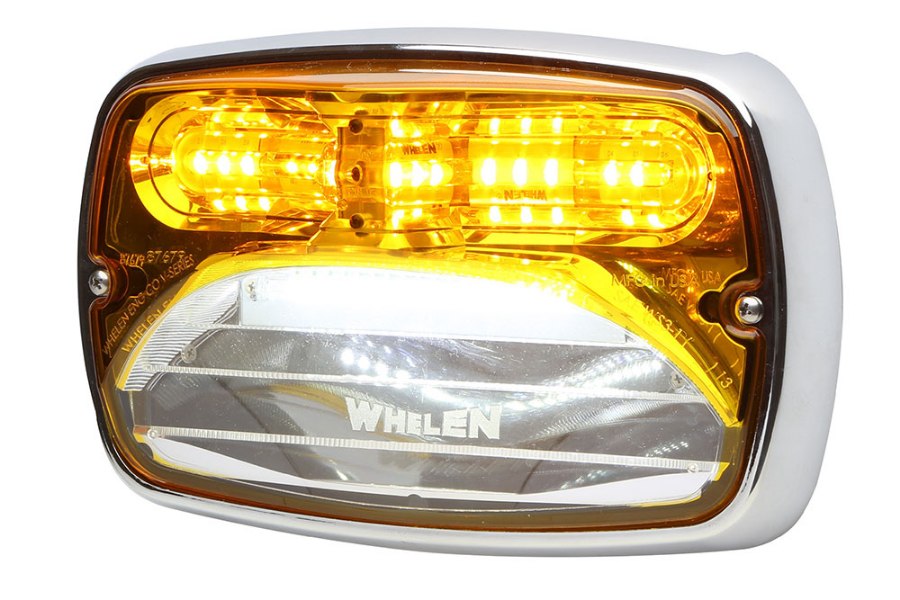

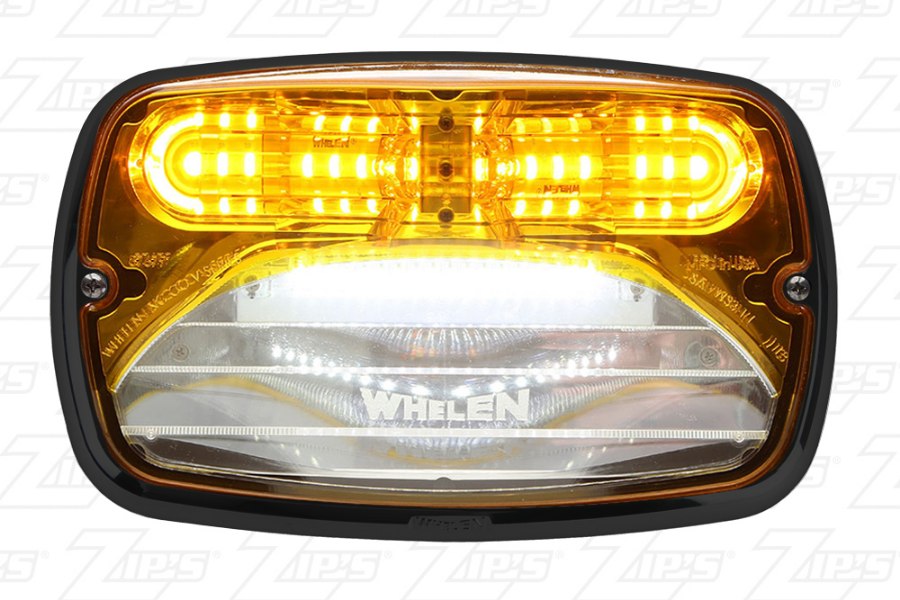

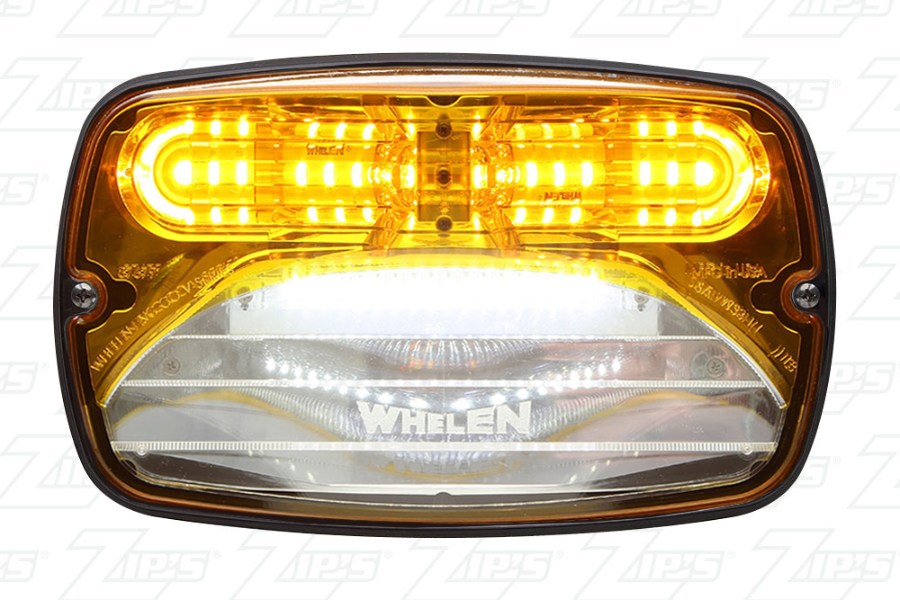

M9V2A	M9V2A	Amber

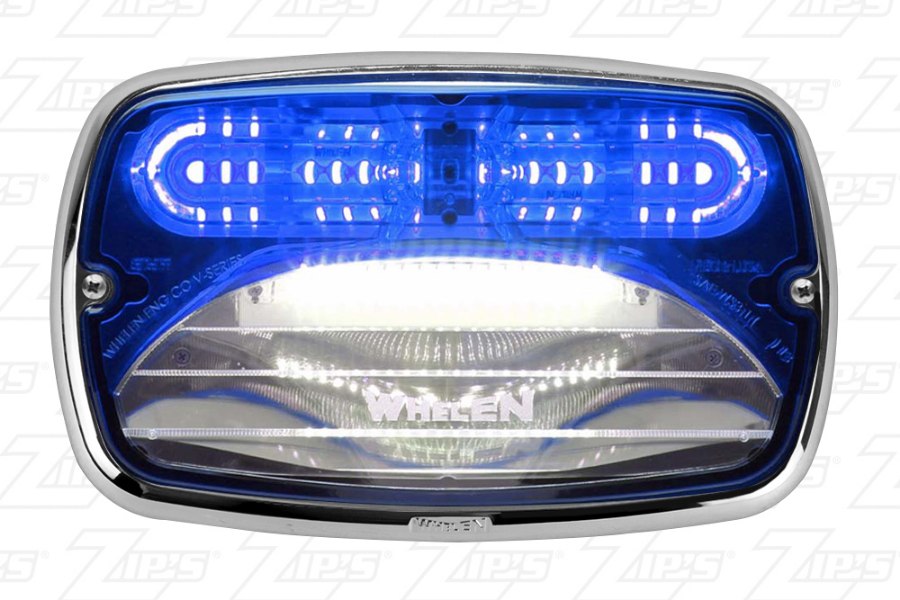

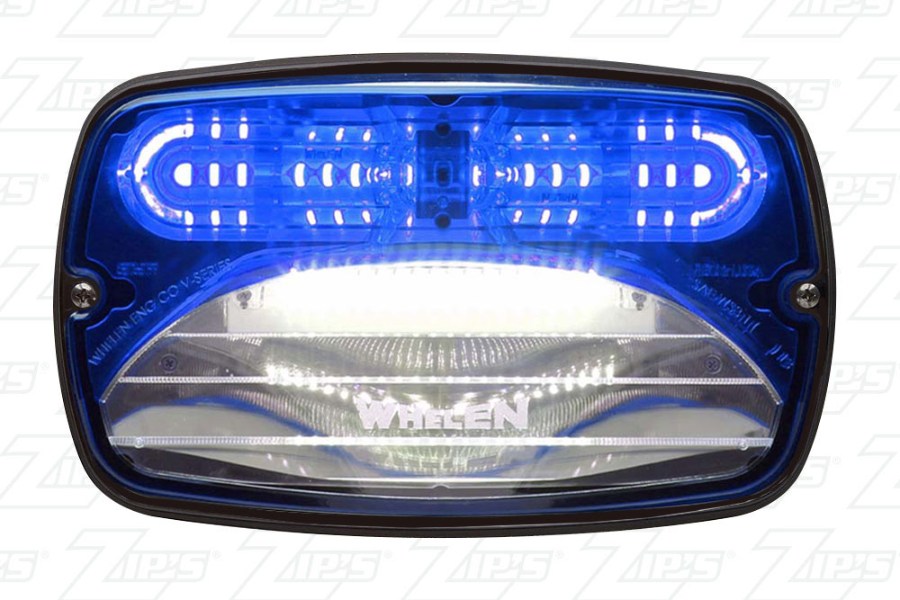

M9V2B	M9V2B	Blue

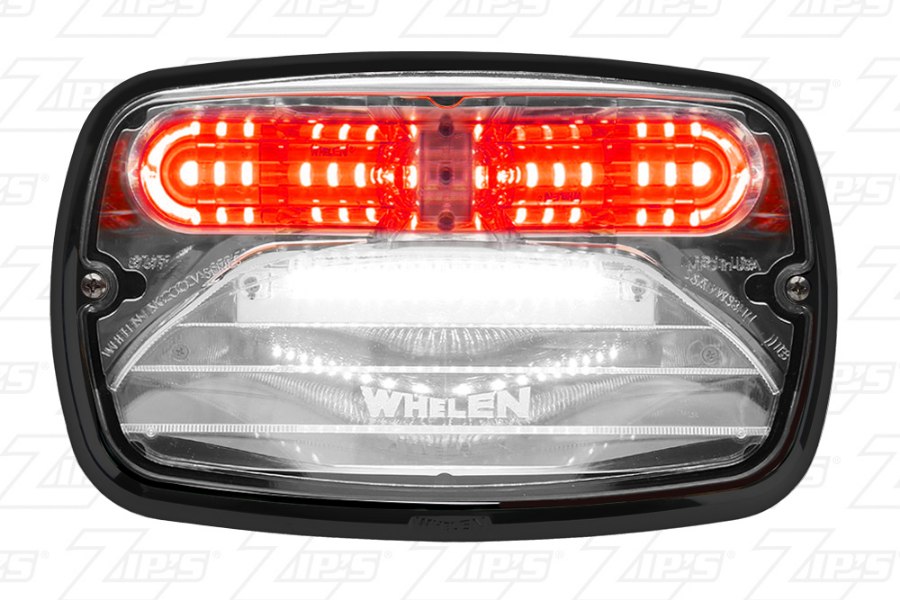

M9V2RC	M9V2RC	Red w/ Clear Lens
M9V2C	M9V2C	Clear/White
