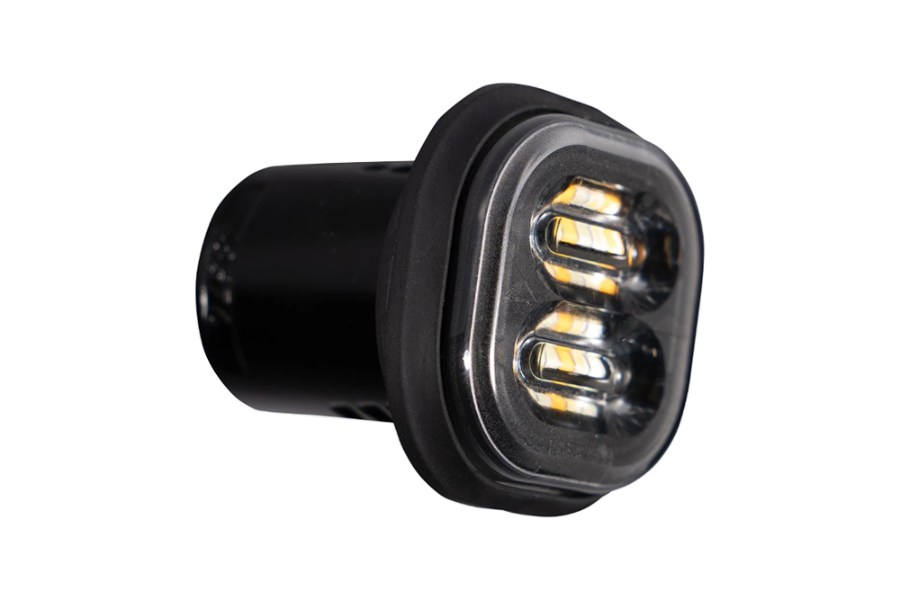

Whelen VXE Tri-Color Warning Light

Customize your truck and improve its visibility with triple-color warning lights from Whelen’s VXE Series. Measuring just 1.35” installed, the VXE series offers a seamless blend of discretion and high visibility for emergency and commercial vehicles. Designed to integrate smoothly into a vehicle’s exterior, the VXE provides an unobtrusive, clean appearance that maintains the vehicle’s sleek aesthetic without sacrificing performance.

Pre-wired with a 9” AW22 pigtail, the surface-mounted light features a 1” rubber grommet for installation and features a hard-coated lens to guard against damage caused by sand, salt, sun and road spray. Extremely durable and long lasting, the conformal-coated electronics and die-cast aluminum housing further protects the light in harsh conditions found at demanding roadside occupations.

Offering exceptional illumination with superior technology, the bright, two-LED light is available with 10 color combinations and is compatible with Whelen’s popular Core light control system. Backed by a 10-year warranty, the VXE light meets SAE J595, SAE J845 and IP67 standards and is compliant with CA Title 13, R10 and R65.

• Hard-coated lenses
• Surface mount
• Conformal-coated electronics
• Die-cast aluminum housing
• Operating temperature: -40°F to 149°F (-40°C to 65°C)
• 1” grommet
• 22 AWG 9" (22.86 cm) pigtail included
• Meets SAE J595, SAE J845 and IP67 standards
• Compliant with CA Title 13, R10 and R65
• Voltage: 10-30 VDC
• Amps: 12.8 VDC: 0.83 (peak), 0.52 (avg.)

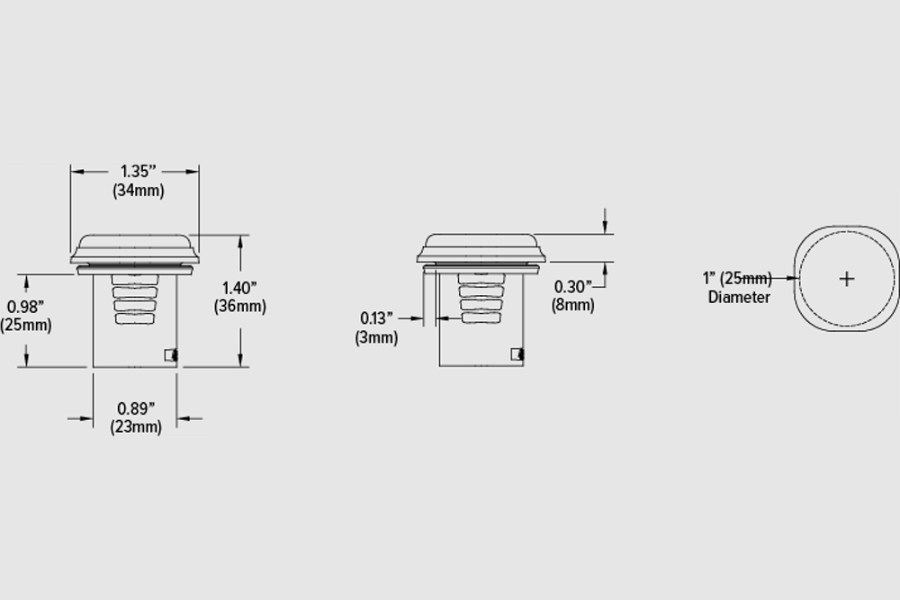

• Size: 1.35”W (34mm) x 1.40”H (36mm) x 0.30”D (8mm)
• 10-year warranty
• Three LEDs
• Core control system compatibilities: Core and Core-S
• Also compatible with Core-R and Core-C (CEM16 required)
