Zacklift Z453 Fifth Wheeler 147" Reach

0 reviews

Leave a Review

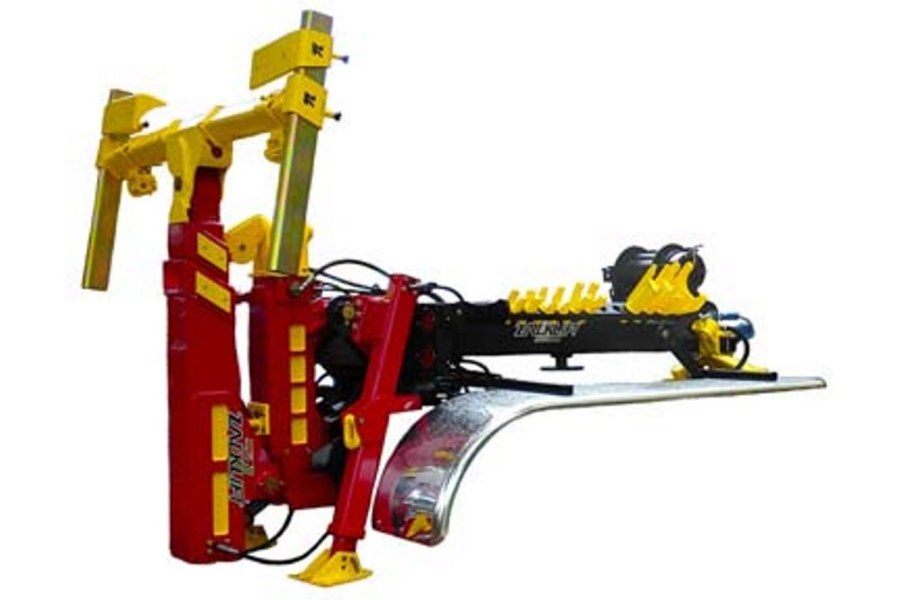

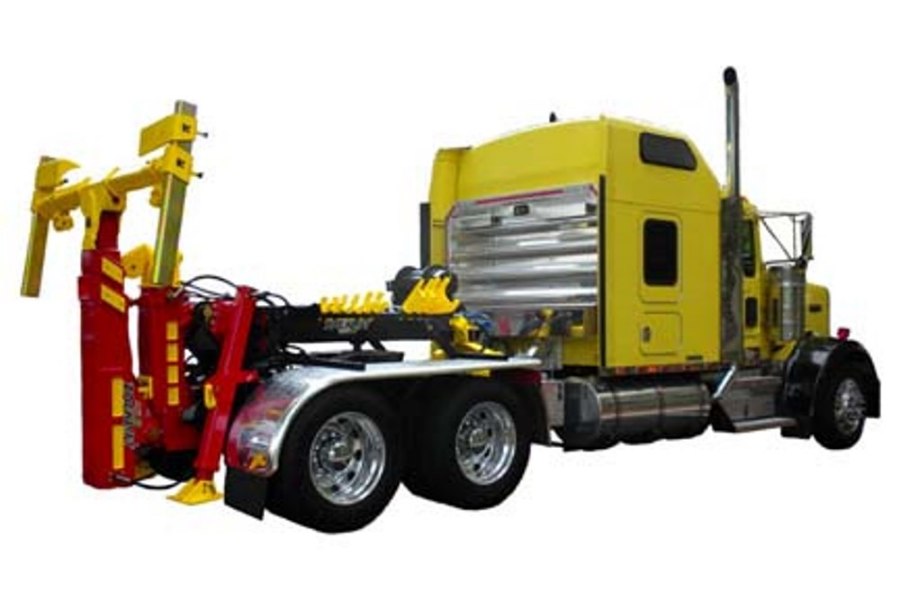

Picture of Zacklift Z453 Fifth Wheeler 147" Reach

SKU: 5TH-453

Price: $70,100.00

Qty:

View Cart

Truck Freight Required

Description

Zacklift Z453 fifth wheeler. The fifth wheeler is backed by Zacklift's 20 years of under reach experience. Zacklift's proven design is engineered for quick convenient attachment and removal. Lower the zacklift flat to the ground, lifting pressure from the kingpin, release pins and drive out. Full unobstructed use of the truck fifth wheel plate is possible after the 5 minute drive-off procedure. The unit mounts on any heavy duty chassis with a compact under-boom location, transforming it into a money making rig.

*When this unit is ordered through our online parts store, you will receive a call from a Zip's representative to confirm your order and to discuss the related options and accessories.

Zacklift Fifth Wheeler Mounted Underlift
Retracted Lift Rating 45,000#
Extended Lift Rating 18,000#
Tow Rating 100,000#
Retracted Distance 67"
Reach, True Usable Reach 135"
Reach w/12" Reach Extensions 147"
App. Reach, Center Of Axles To Forks 190"
Distance From Tailboard When Stored 12"
Upward Tilt, Max Lifting Height 20 Degrees, 59"
Tilt Below Ground 8 Degrees, 21"
Downstroke On Lift Cylinder 17"
Fifth Wheeler Weight - 4,109#
Standard Equipment Includes; One Pair Each 1" x 2.5" Fork, Torsion Bar Fork, 6" x 6.5" Fork, 9" x 4" Fork, Chain Fork Slotted For 1/2" to 5/8" chain, Chain Attachment Block, Safety Chains, Multi Positional Fork Receiver, 12" Reach Extender
No-Charge Option: Self-Contained Complete Power System - Includes Valve, Pump Motor, Reservoir, Lines and Remote Control OR Electric Over Hydraulic Valve, for Use With Existing PTO and Pump. Includes Lines & Remote Control.

Shipping & Returns

This product requires truck freight delivery. Standard parcel carriers are not available for this item.

Orders placed by 2 p.m. CST normally ship the same day. Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #
5TH-453	5TH-453
