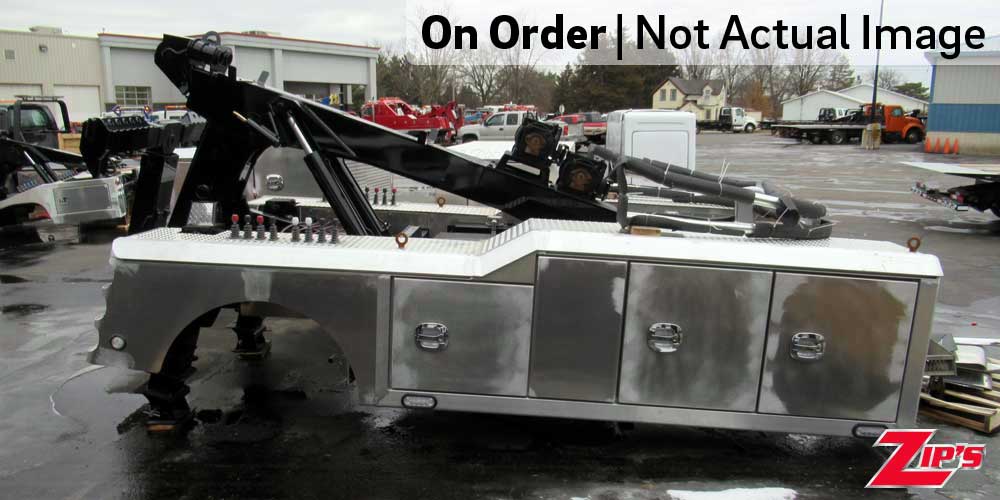

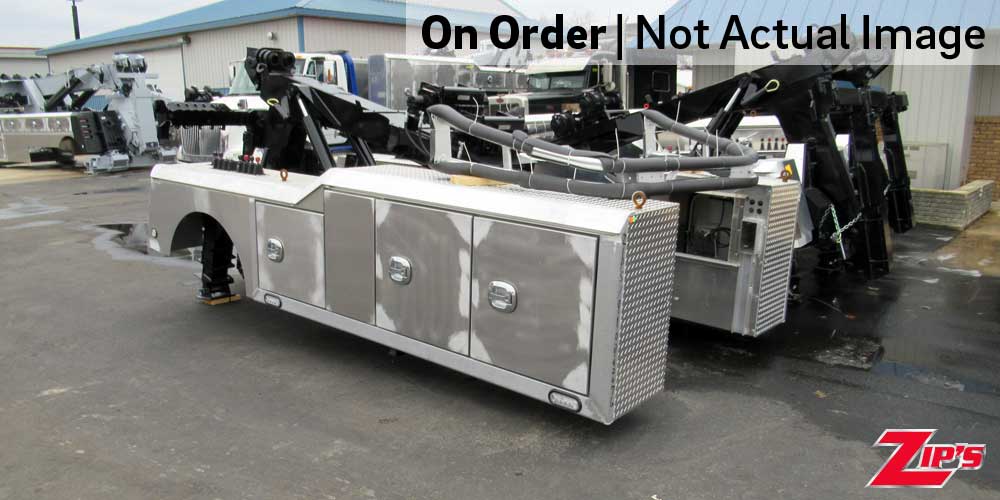

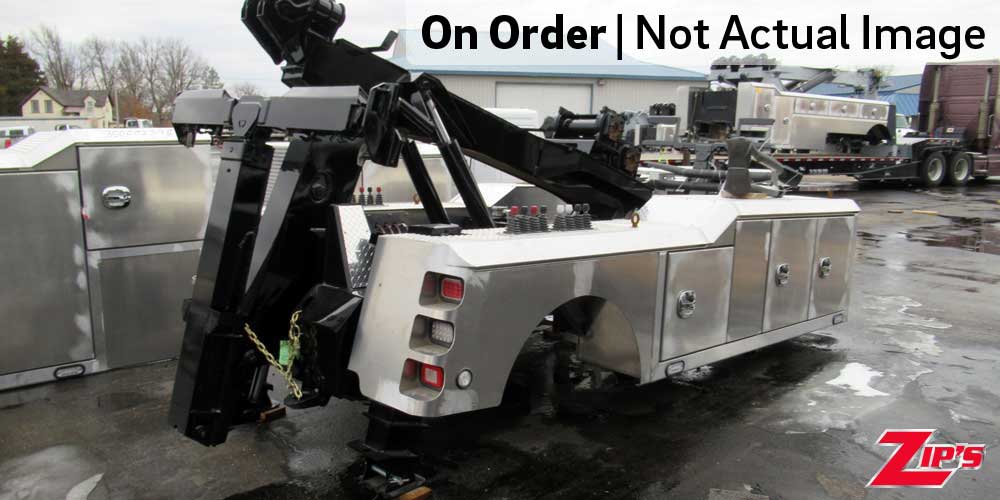

Century 3212CX2 16 Ton Wrecker

Century 3212 Medium Duty Integrated Wrecker
84” Aluminum Modular Body with Rubber Mounting Isolators
3 Compartments Per Side
Manual Controls - Driver's & Passenger Side
Lanyard Controls for Underlift & Boom on the Passenger Side
Chrome Double Action Latches with Keyless Lock/Unlock
4,000 lb & 6,000 lb L-Arms with Pivoting Receivers
Dual 15,000 lb Planetary Winches
Winch Air Free Spool
Cable Tensioners
4 Sets of Lift Forks & Fork Holders
Safety Chains in Tailboard
Gas Door Shocks
Federal Standard 108 Lighting
LED Body Lighting
360 Degree Sheave Head
Low Profile Crossbar
Hydraulic Rear Jacks with Flipper Feet
Tailboard "D" Rings
Air & Electrical Hookups
LED Tool Compartment Lighting
Cable Tiebacks
Mud Flaps
Boom Rating Retracted 32,000 lbs.
Boom Rating Extended 12,000 lbs.
Maximum Angle 36°
Maximum Hook Height 160”
Maximum Reach Past Tailboard at 30° 54”
Fully Retracted With Forks 12,000 lbs.
Fully Extended With Forks 8,500 lbs.
Retracted or Extended with L-Arms 6,000 lbs. / 4,000 lbs.
Reach to Center of Fork Holder at Normal Tow Position 84”
Positive Tilt 20°
Negative Tilt 10°
Tow Rating 32,000 lbs.
Rating (First Layer, Each Winch) 15,000 lbs.
Diameter and Length (Each Winch) 1/2” x 150’
Type 6 x 37 IWRC

Will fit a single axle chassis with 84" - 138" CA Clear, Requires a GVWR of 26,500 - 31,000 lbs, A Maximum Frame Height of 40", and a Maximum Tire Size of 275/70R22.5. Check out our website for available chassis that are in stock today and ready to install!!

Look at the body specs and brochures tabs for more information about this wrecker.
