Miller 8000SP2 Winch w/ Tensioner

0 reviews

Leave a Review

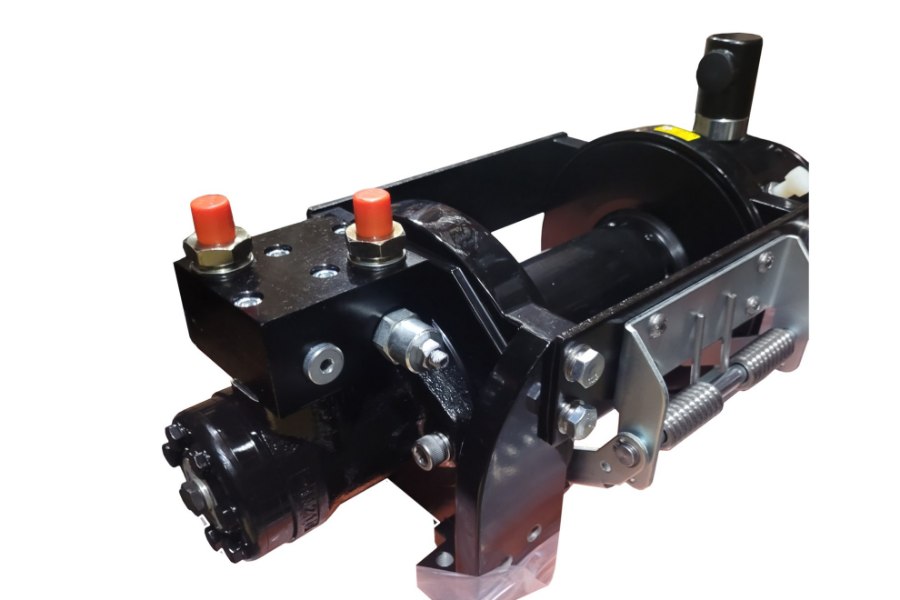

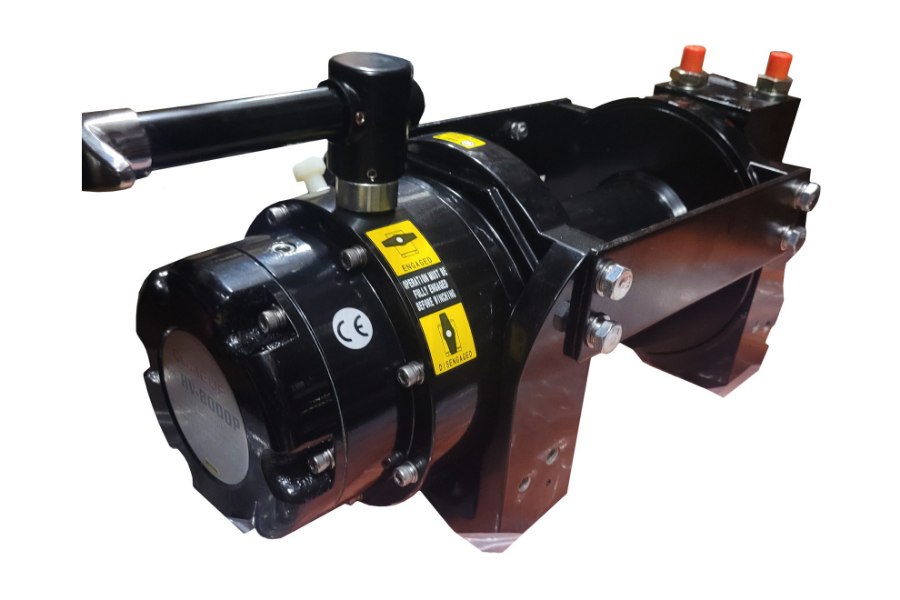

Picture of Miller 8000SP2 Winch w/ Tensioner

SKU: 12-0310777

Price: $2,705.99

Buy now, pay later with

Qty:

View Cart

Truck Freight Required

Description

Hydraulic recovery winch.

Powered by a PTO/power take off unit driven pump
Fast and variable recovery speeds for high work rate
Highly efficient and constant operating torque motor
2 stage planetary gear train for greater pulling force
Turn clutch by ergonomic T-handle for rapid wire rope payout
Drag brake and over center valve providing complete braking
EN 14492-1 supported: 10:1 D/d ratio and 2:1 wire rope strength allow severe duty vehicles and commercial recovery
Meet SAE J706, CE Machinery Directive 2006/42/EC and support EN 14492-1: 2006 Power Driven Winches

SPECIFICATIONS
Rated line pull: 3,630 kg / 8,000 lb (SAE J706 rating) and 3,560 kg (EN 14492-1 rating)
Line speed (at 1st layer of rope) : 15 mpm at 60 l/min (49 fpm at 15.9 g/min)
Operation pressure: 150 bar / 2,175 psi
Max oil flow: 60 l/min (15.9 g/min)
Hydraulic motor: 77.8 cm3/rev (4.7 in3/rev)
Gear ratio: 2-stage planetary gear 16:1
Winch construction: Aluminum die cast housings with steel drum
Clutch (Freespooling): Rotating ring gear
Brake: Spring applied drag brake together with over-center valve supplied
Rotation of winch: Wire rope shall be under-wound orientation only
Drum barrel diameter: 90 mm (3.5")
Drum flange diameter: 201.5 mm (7.9")
Distance between flanges: 190 mm (7.5") - Std. drumand 253 mm (10") - Long drum
Mounting bolts pattern: 228.6 x 171.2 mm (9" x 6.7") ; 311.2 x 114 mm (12.3" x 4.5") - Std. drum and 291.6 x 171.2 mm (11.5" x 6.7") ; 374.5 x 114 mm (14.7" x 4.5") - Long drum
Wire rope recommended: 10 mm (3/8") diameter, 1,960 N/mm2 grade 30 m (98') for Std. drum ; 40 m (131') for Long drum, a minimum breaking strength of 69.8 kN (15,663 lbf) is required
Winch weight: 35.5 kg / 78.1 lb - Std. drum and 37.5 kg / 82.7 lb - Long drum
Gross weight: 43.3 kg / 95.3 lb - Std. drum and 45.3 kg / 99.9 lb - Long drum
Compliant with EN 14492-1 requirements for vehicle recovery winches

Applications
Towing & Recovery
